  11. Pin & Sleeve Inlet, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Silver
This item is Discontinued.

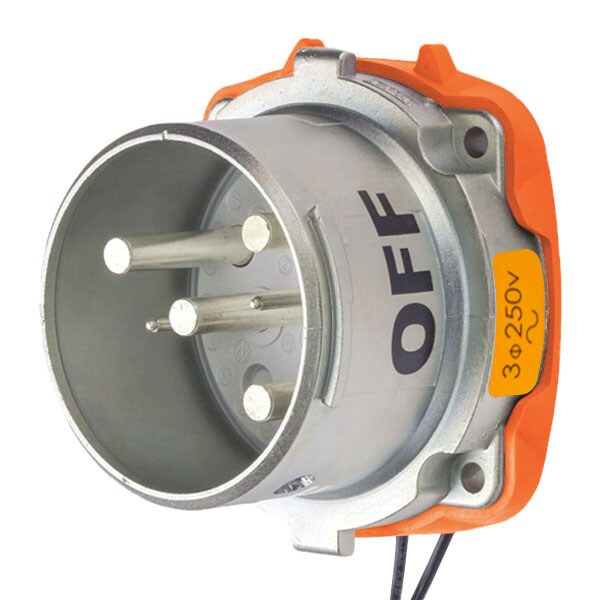

Meltric Pin & Sleeve Inlet, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Silver 37-68073-972

Pin & Sleeve Inlet, 60 A, 250V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Silver (Discontinued)

  • Mfr # 37-68073-972
  • Zoro # G501759152
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
37-68073-972
Zoro #
G501759152
UPC #
784474012508
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
4
Wire Size
14 AWG; 10 AWG to 2 AWG
Wire Strip Length
Phase: 15/16 in (24 mm)

Details

Item
Pin & Sleeve Inlet
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Silver
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
HP
10
Switch Rated
Yes
Body Material
Aluminum
Use With
Mating Box MB6
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Auxiliary Contact Voltage Rating
600VAC
Impact Rating
IK10
Terminal Connection
Prewired
Auxiliary Contact Rating
1.2A
Keying Position
7
Color Code
Orange
Wire Temperature Rating
60 Degrees C
Load Break Amp Rating
60A
Number of Aux. Outputs
+2 AUX
Hz
60 Hz
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Number of Notch Positions
24
Load Break Amp Rating_Abnormal Overload
90A

Description

DS60 INLET METAL SIZE 4 TYPE 3R 3P+G 60A 250 VAC 60 Hz +2 AUX
