  11. Pin & Sleeve Inlet, 60 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

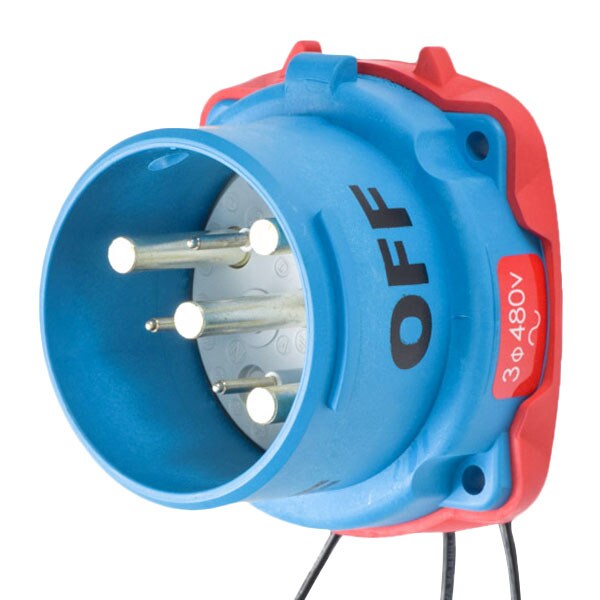

Meltric Pin & Sleeve Inlet, 60 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue 33-68043-263

Pin & Sleeve Inlet, 60 A, 480V AC, Three Phase, 3 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 33-68043-263
  • Zoro # G901758229
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-68043-263
Zoro #
G901758229
UPC #
784474588171
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
4
Wire Size
14 AWG; 10 AWG to 2 AWG
Wire Strip Length
Phase: 15/16 in (24 mm)

Details

Item
Pin & Sleeve Inlet
Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
Switch Rated
Yes
HP
25
Voltage
480V AC
Body Material
Polyester
Use With
Mating Box MB6
Load Break Amp Rating
60A
Color Code
Red
Number of Aux. Outputs
+3 AUX
Hz
60 Hz
Contact Configuration
3P+G
Impact Rating
IK08
Terminal Connection
Prewired
Auxiliary Contact Rating
0.6A
Terminal Type
Screw terminal
Operating Temp. Range
-40C to 60C
Wire Temperature Rating
60 Degrees C
Auxiliary Contact Voltage Rating
600VAC
Number of Notch Positions
24
Tightening Torque
Phase: 48 IN-LBS / 5.4 N-M
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Keying Position
4
Load Break Amp Rating_Abnormal Overload
90A

Description

DS60 INLET POLY BLUE SIZE 4 TYPE 3R 3P+G 60A 480 VAC 60 Hz +3 AUX
