  11. Pin & Sleeve Receptacle, 100 A, 250V DC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X

This item is Discontinued.

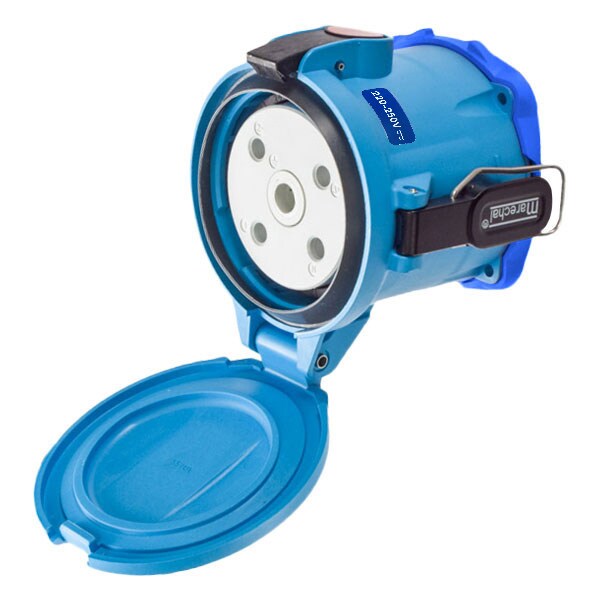

Meltric Pin & Sleeve Receptacle, 100 A, 250V DC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X 33-94209

Pin & Sleeve Receptacle, 100 A, 250V DC, 2 Pole, Screw Terminals Wire Connection Type Blue, NEMA 4X (Discontinued)

  • Mfr # 33-94209
  • Zoro # G101759552
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-94209
Zoro #
G101759552
UPC #
784474590693
Country of Origin
United States

Dimensions

Use With Installation Accessory Size
5
Wire Size
4 AWG to 2/0 AWG
Wire Strip Length
Phase: 1-3/16 in (30 mm)

Details

Item
Pin & Sleeve Receptacle
Current Rating
100 A
Voltage Rating
250V DC
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 1682
Resistance Properties
Corrosion Resistant, UV AC/Sunlight Resistant, Watertight
Use With
Mating Box MB10
Body Material
Polyester
Impact Rating
IK08
Number of Notch Positions
24
Color Code
Blue
Keying Position
20
Tightening Torque
Phase: 90 IN-LBS / 10.2 N-M
Wire Temperature Rating
60 Degrees C
Contact Configuration
2P+G
Operating Temp. Range
-40C to 60C
Load Break Amp Rating_Abnormal Overload
150A
Flange Type
Flanged

Description

DSDC9 RECEPTACLE POLY BLUE SIZE 5 TYPE 4X 2P+G 100A 250 VDC
