  11. Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue

This item is Discontinued.

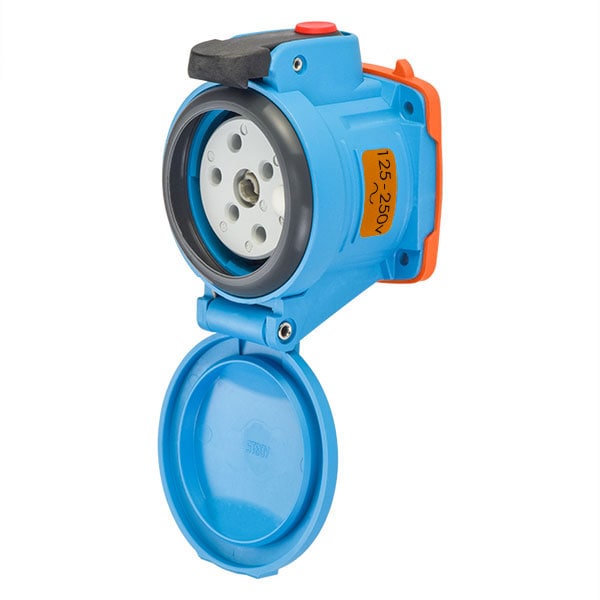

Meltric Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue 63-34076-972

Pin & Sleeve Receptacle, 30 A, 125/250V AC, 2 Pole, Screw Terminals Wire Connection Type Blue (Discontinued)

  • Mfr # 63-34076-972
  • Zoro # G001758600
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
63-34076-972
Zoro #
G001758600
UPC #
784474589727
Country of Origin
United States

Dimensions

Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 7/16 in (11 mm)
Use With Installation Accessory Size
2
Wire Size
14 AWG to 14 AWG; 14 AWG to 8 AWG

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
125/250V AC
Number of Poles
2
Number of Wires
4
IP Rating
IP66, IP67, IP69
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, ULC, E79796, UL 1682, UL 2682, UL508
Resistance Properties
Impact Resistant
HP
1 or 3
Switch Rated
Yes
Body Material
Polyester
Use With
Mating Box MB3
Color Code
Orange
Number of Notch Positions
24
Contact Configuration
2P+N+G
Keying Position
7
Load Break Amp Rating
30A
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Auxiliary Contact Rating
1.2A
Terminal Connection
Screw
Operating Temp. Range
-40C to 60C
Wire Temperature Rating
60 Degrees C
Hz
60 Hz
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Auxiliary Contact Voltage Rating
600VAC
Number of Aux. Outputs
+2 AUX
Impact Rating
IK08
Load Break Amp Rating_Abnormal Overload
45A

Description

DSN30 RECEPTACLE POLY BLUE SIZE 2 TYPE 4X IP 69 2P+N+G 30A 125/250 VAC 60 Hz +2 AUX
