  11. Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X

This item is Discontinued.

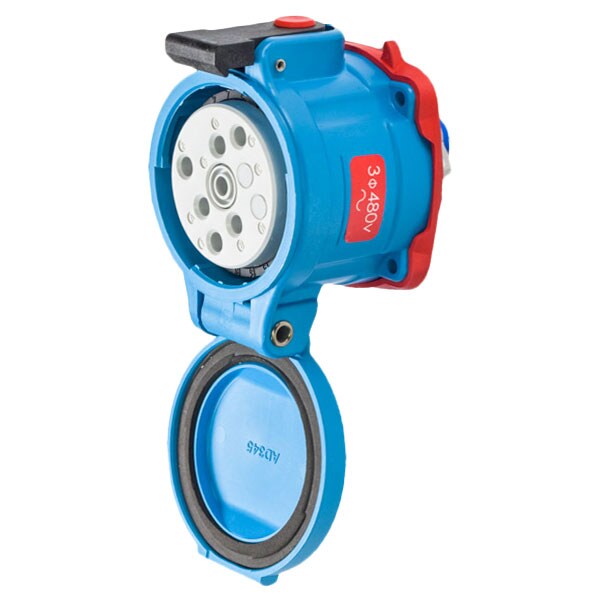

Meltric Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X 33-34043-973-4X

Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, Blue, NEMA 4X (Discontinued)

  • Mfr # 33-34043-973-4X
  • Zoro # G201757595
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33-34043-973-4X
Zoro #
G201757595
UPC #
784474645294
Country of Origin
United States

Dimensions

Wire Strip Length
Auxiliary: 1/2 in (13 mm); Phase: 3/4 in (19 mm)
Use With Installation Accessory Size
3
Wire Size
14 AWG; 14 AWG to 4 AWG

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Flip-Up Cap
Standards
cCSAus, 155873, C22.2 No. 182.1-13, E79796, UL 2682, UL 1682, UL508
Resistance Properties
Impact Resistant
Body Material
Polyester
Switch Rated
Yes
Use With
Mating Box MB3
HP
15
Hz
60 Hz
Auxiliary Contact Voltage Rating
600VAC
Wire Temperature Rating
60 Degrees C
Operating Temp. Range
-40C to 60C
Contact Configuration
3P+G
Load Break Amp Rating
30A
Impact Rating
IK08
Terminal Connection
Screw
Color Code
Red
Keying Position
4
Tightening Torque
Auxiliary: 15 IN-LBS / 1.7 N-M; Phase: 15 IN-LBS / 1.7 N-M
Short Circuit Current Rating
100 KA - MAKE & WITHSTAND
Number of Aux. Outputs
+3 AUX
Number of Notch Positions
24
Auxiliary Contact Rating
1.2A
Load Break Amp Rating_Abnormal Overload
45A

Description

DS30 RECEPTACLE POLY BLUE SIZE 3 TYPE 4X 3P+G 30A 480 VAC 60 Hz +3 AUX TYPE 4X WATERTIGHTNESS
