  11. Oven, 1.1 cu. ft., Natural Gravity, 1 Shelf

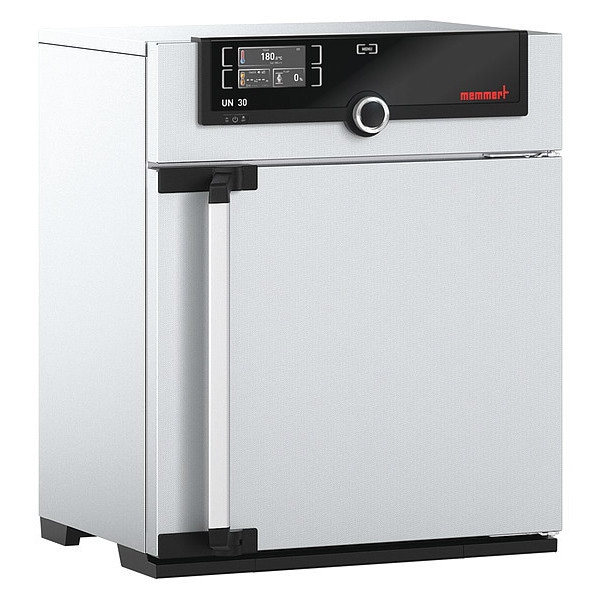

Memmert Oven, 1.1 cu. ft., Natural Gravity, 1 Shelf UN 30, 230V - main

Oven, 1.1 cu. ft., Natural Gravity, 1 Shelf

  • Mfr # UN 30, 230V

  • Zoro # G2202929

product price: $2,499.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Overall Depth
19 1/4 in
Overall Height
27 3/4 in
Overall Width
23 in
Convection Type
Gravity
Capacity
1.1 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UN 30, 230V
Zoro #
G2202929
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
19 1/4 in
Overall Height
27 3/4 in
Overall Width
23 in
Chamber Width
15.8 in
Inside Usable Dimensions
12.6"H x 15.8"W x 9.8"D
Manufacturers Warranty Length
3 yr
Overall Dimensions
27.8"H x 23"W x 17.1"D
Chamber Height
12.6 in
Chamber Depth
9.8 in
Interior Height
12 5/8 in
Interior Width
15 3/4 in
Interior Depth
9 3/4 in

Details

Item
Universal Oven
Convection Type
Gravity
Capacity
1.1 cu ft
Volume
1.13 cu ft
Wattage
1,600 W
Voltage
230V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Includes
Power Cord
Capacity (Cu.-Ft.)
1.1
Housing Material
Stainless Steel
Power Requirement
230V, 50/60 Hz
Temp. Accuracy
up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Preheat Time
28 to 39 min.
Special Features
(2) Sensors for Mutual Monitoring, AtmoCONTROL Software, Color Touch Screen Controller, Displaying of Already Logged Protocol Data on The Controller, Electronic Temperature Monitoring TWW/TWB and Mechanical Temperature Limiter TB, Ethernet Interface for Reading Out The Protocol Data and for Uploading Programs, HeatBALANCE Function, Internal Data Logger with A Storage Capacity of At Least 10 Years, Multiple Over Temperature Protection, Reading Out Protocol Logs, Stainless Steel Interior and Housing, USB Port on The Controller For Uploading Programs, User Adjustable Calibration Values
Door Material
Stainless Steel
Power Consumption
1600W
Number of Doors
1
Amps
7 A
Hz
50/60
Temp. Uniformity
+/-2.7 Degrees C
Shelf Capacity
44 lb
Temp. Recovery Time
6 to 14 min.
Thermostat
PT 100 Sensor
Temp. Range
5 to 300 Degrees C
Number of Shelves
1
Material
304 STAINLESS STEEL
Temp. Range (C)
At least 5 Degrees C above ambient up to +300 Degrees C
Chamber Material
Stainless Steel
Capacity (ML)
32,000
Watts
1,600 W
Interior Material
Stainless Steel
Display Type
Digital
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Temperature Setting - Minimum
20 Degrees C
Temperature Uniformity
+/-2.7 Degrees C
Minimum Top Clearance
7 7/8 in
Timer Duration - Maximum
99 day
Minimum Back Clearance
5 7/8 in
Minimum Side Clearance
2 in
Number of Temperature Settings
1
Maximum Number of Shelves
3
Housing Finish
Zinc Plated
Maximum Load Capacity per Shelf
44.1 lb
Temperature Setting - Maximum
300 Degrees C
Current
7 A
Number of Shelves Included
1
Color
Silver
Timer Duration - Minimum
1 min
Product Type
Universal Oven
Frequency
50/60 Hz
Shelving Type
Grid
Shelving Material
Stainless Steel
Control Type
Touch Screen

Description

Universal Oven, Convection Type Gravity, Temp. Range (C) At least 5 Degrees C above ambient up to +300 Degrees C, Overall Height 27 3/4 in, Overall Width 23 in, Overall Depth 19 1/4 in, Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 12.6 in, Chamber Width 15.8 in, Chamber Depth 9.8 in, Amps 7 A, Hz 50/60, Voltage 230V AC, Watts 1,600 W, Capacity (Cu.-Ft.) 1.1, Capacity (ML) 32,000, Programmable Yes, Temp. Uniformity +/-2.7 Degrees C
