  11. Oven, 9 cu. ft., 3400W, Natural Gravity

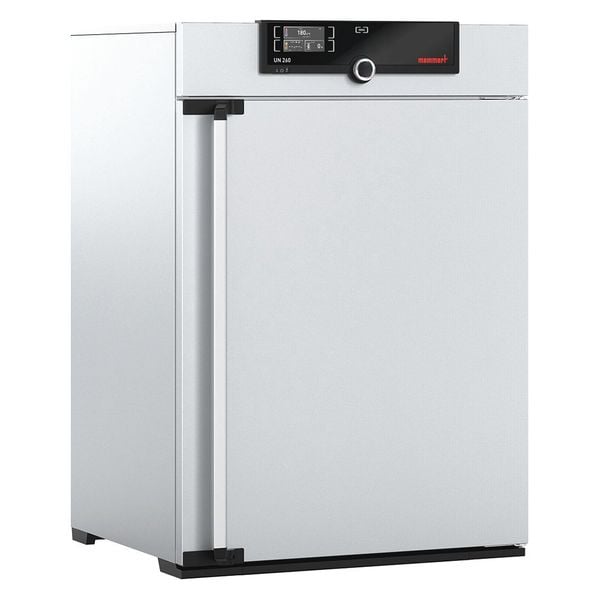

Memmert Oven, 9 cu. ft., 3400W, Natural Gravity UN 260, 230V - main

Oven, 9 cu. ft., 3400W, Natural Gravity

  • Mfr # UN 260, 230V

  • Zoro # G2202816

product price: $7,019.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

Overall Depth
29 in
Overall Height
46 5/8 in
Overall Width
32 3/8 in
Convection Type
Gravity
Capacity
9 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UN 260, 230V
Zoro #
G2202816
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
29 in
Overall Height
46 5/8 in
Overall Width
32 3/8 in
Inside Usable Dimensions
31.5"H x 25.2"W x 19.7"D
Manufacturers Warranty Length
3 yr
Overall Dimensions
46.7"H x 32.4"W x 26.9"D
Chamber Width
25.2 in
Chamber Depth
19.7 in
Chamber Height
31.5 in
Interior Depth
19 3/4 in
Interior Height
31 1/2 in
Interior Width
25 in

Details

Item
Universal Oven
Convection Type
Gravity
Capacity
9 cu ft
Volume
9.04 cu ft
Wattage
3,400 W
Voltage
230V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Includes
(2) Stainless Steel Grids
Temp. Uniformity
+/-1.8 Degrees C
Capacity (Cu.-Ft.)
3
Temp. Accuracy
up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Watts
3,400 W
Temp. Range (C)
At least 5 Degrees C above ambient up to +300 Degrees C
Chamber Material
Stainless Steel
Amps
14.8 A
Material
304 STAINLESS STEEL
Thermostat
PT 100 Sensor
Number of Shelves
2
Door Material
Stainless Steel
Housing Material
Stainless Steel
Shelf Capacity
44 lb
Preheat Time
33 to 104 min.
Power Consumption
3400W
Special Features
(2) Sensors for Mutual Monitoring, AtmoCONTROL Software, Color Touch Screen Controller, Displaying of Already Logged Protocol Data on The Controller, Electronic Temperature Monitoring TWW/TWB and Mechanical Temperature Limiter TB, Ethernet Interface for Reading Out The Protocol Data and for Uploading Programs, HeatBALANCE Function, Internal Data Logger with A Storage Capacity of At Least 10 Years, Multiple Over Temperature Protection, Reading Out Protocol Logs, Stainless Steel Interior and Housing, USB Port on The Controller For Uploading Programs, User Adjustable Calibration Values
Temp. Range
5 to 300 Degrees C
Number of Doors
1
Power Requirement
230V, 50/60 Hz
Capacity (ML)
256,000
Temp. Recovery Time
14 to 27 min.
Hz
50/60
Frequency
50/60 Hz
Current
14.8 A
Minimum Back Clearance
5 7/8 in
Minimum Top Clearance
7 7/8 in
Color
Silver
Shelving Type
Grid
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Product Type
Universal Oven
Maximum Number of Shelves
9
Housing Finish
Zinc Plated
Interior Material
Stainless Steel
Maximum Load Capacity per Shelf
44.1 lb
Timer Duration - Minimum
1 min
Temperature Uniformity
+/-1.8 Degrees C
Timer Duration - Maximum
99 day
Shelving Material
Stainless Steel
Temperature Setting - Maximum
300 Degrees C
Number of Temperature Settings
1
Display Type
Digital
Minimum Side Clearance
2 in
Temperature Setting - Minimum
20 Degrees C
Number of Shelves Included
2
Control Type
Touch Screen

Description

Universal Oven, Convection Type Gravity, Temp. Range (C) At least 5 Degrees C above ambient up to +300 Degrees C, Overall Height 46 5/8 in, Overall Width 32 3/8 in, Overall Depth 29 in, Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 31.5 in, Chamber Width 25.2 in, Chamber Depth 19.7 in, Amps 14.8 A, Hz 50/60, Voltage 230V AC, Watts 3,400 W, Capacity (Cu.-Ft.) 9, Capacity (ML) 256,000, Programmable Yes, Temp. Uniformity +/-1.8 Degrees C
