  11. Oven, Forced Air, 5.9 cu. ft. Cap., 15.7A

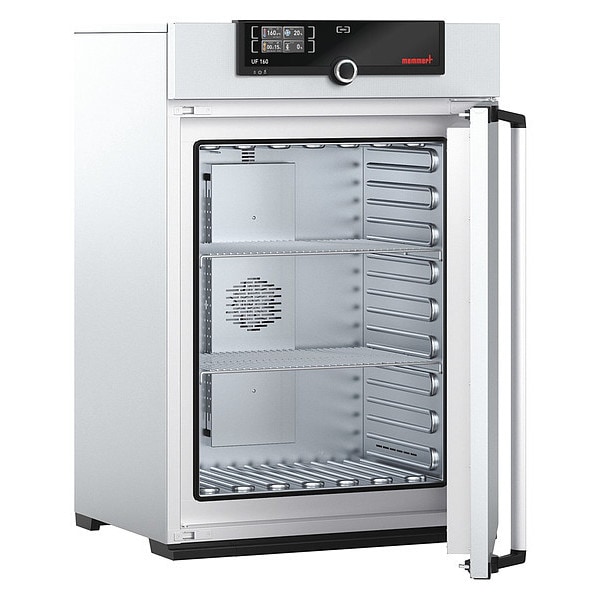

Memmert Oven, Forced Air, 5.9 cu. ft. Cap., 15.7A UF 160 - main

Oven, Forced Air, 5.9 cu. ft. Cap., 15.7A

  • Mfr # UF 160

  • Zoro # G5784733

product price: $6,359.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Convection Type
Forced Air
Capacity
5.9 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UF 160
Zoro #
G5784733
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Chamber Depth
15.7 in
Chamber Width
22 in
Chamber Height
28.3 in
Manufacturers Warranty Length
3 yr
Interior Height
28 1/4 in
Interior Depth
14 1/4 in
Interior Width
22 in

Details

Item
Universal Oven
Convection Type
Forced Air
Capacity
5.9 cu ft
Volume
5.87 cu ft
Wattage
3,200 W
Voltage
115V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Housing Material
Stainless Steel
Special Features
Color Touch Screen Controller, Double Over Temperature Protection, Ethernet Interface for Reading Out Protocol Log, Internal Data Logger with A Storage Capacity of At Least 10 Years, Stainless Steel Housing and Exterior, User Adjustable Calibration Values
Temp. Range (C)
At least 10 Degrees C above ambient up to +300 Degrees C
Hz
50/60
Chamber Material
Stainless Steel
Door Material
Stainless Steel
Capacity (Cu.-Ft.)
5.9
Includes
(2) Stainless Steel Grids
Amps
15.7 A
Number of Shelves
2
Temp. Accuracy
Up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Watts
1,800 W
Capacity (ML)
161,000
Shelf Capacity
60 lb
Number of Doors
1
Temp. Uniformity
+/-1.9 Degrees C
Product Type
Universal Oven
Minimum Back Clearance
7 7/8 in
Timer Duration - Maximum
99 day
Minimum Top Clearance
5 7/8 in
Interior Material
Stainless Steel
Frequency
50/60 Hz
Number of Temperature Settings
1
Timer Duration - Minimum
1 min
Maximum Number of Shelves
8
Housing Finish
Zinc Plated
Current
15.7 A
Shelving Type
Grid
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Number of Shelves Included
2
Minimum Side Clearance
2 in
Temperature Setting - Maximum
300 Degrees C
Maximum Load Capacity per Shelf
44.1 lb
Control Type
Touch Screen
Display Type
Digital
Temperature Uniformity
+/-1.9 Degrees C
Temperature Setting - Minimum
20 Degrees C
Color
Silver
Shelving Material
Stainless Steel

Description

Universal Oven, Convection Type Forced Air, Temp. Range (C) At least 10 Degrees C above ambient up to +300 Degrees C, Overall Height 43 1/2 in, Overall Width 29 1/4 in, Overall Depth 25 1/4 in, Temp. Accuracy Up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 28.3 in, Chamber Width 22 in, Chamber Depth 15.7 in, Amps 15.7 A, Hz 50/60, Voltage 115V AC, Watts 1,800 W, Capacity (Cu.-Ft.) 5.9, Capacity (ML) 161,000, Programmable Yes
