  11. Oven, Natural Gravity, 5.9 cu. ft. Cap.

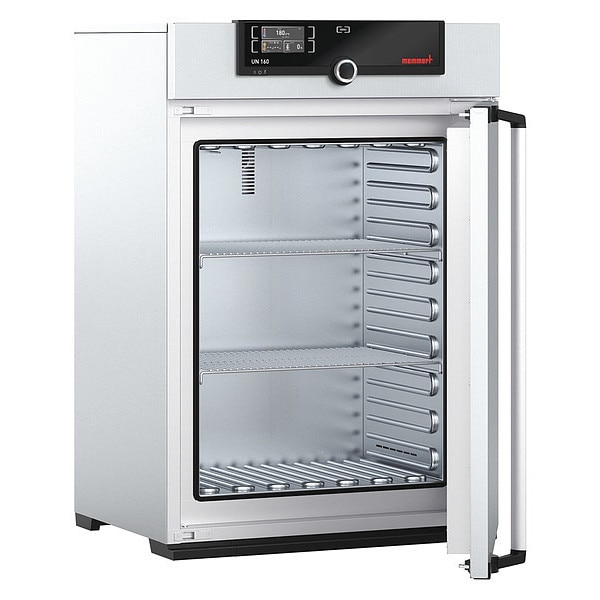

Memmert Oven, Natural Gravity, 5.9 cu. ft. Cap. UN 160 - main

Oven, Natural Gravity, 5.9 cu. ft. Cap.

  • Mfr # UN 160

  • Zoro # G5796907

product price: $4,829.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Convection Type
Gravity
Capacity
5.9 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UN 160
Zoro #
G5796907
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Chamber Height
28.3 in
Manufacturers Warranty Length
3 yr
Chamber Width
22 in
Chamber Depth
15.7 in
Interior Depth
15 3/4 in
Interior Width
22 in
Interior Height
28 1/4 in

Details

Item
Universal Oven
Convection Type
Gravity
Capacity
5.9 cu ft
Volume
5.87 cu ft
Wattage
3,200 W
Voltage
115V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Watts
1,800 W
Number of Shelves
2
Shelf Capacity
44 lb
Includes
(2) Stainless Steel Grids
Capacity (Cu.-Ft.)
5.9
Chamber Material
Stainless Steel
Number of Doors
1
Special Features
(2) Sensors for Mutual Monitoring, AtmoCONTROL Software, Color Touch Screen Controller, Displaying of Already Logged Protocol Data on The Controller, Electronic Temperature Monitoring TWW/TWB and Mechanical Temperature Limiter TB, Ethernet Interface for Reading Out The Protocol Data and for Uploading Programs, HeatBALANCE Function, Internal Data Logger with A Storage Capacity of At Least 10 Years, Multiple Over Temperature Protection, Reading Out Protocol Logs, Stainless Steel Interior and Housing, USB Port on The Controller For Uploading Programs, User Adjustable Calibration Values
Temp. Range (C)
At least 5 Degrees C above ambient up to +300 Degrees C
Amps
15.7 A
Door Material
Stainless Steel
Capacity (ML)
161,000
Hz
50/60
Temp. Accuracy
Up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Housing Material
Stainless Steel
Temp. Uniformity
+/-1.9 Degrees C
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Frequency
50/60 Hz
Temperature Setting - Minimum
20 Degrees C
Control Type
Touch Screen
Product Type
Universal Oven
Current
15.7 A
Housing Finish
Zinc Plated
Display Type
Digital
Timer Duration - Minimum
1 min
Interior Material
Stainless Steel
Shelving Type
Grid
Number of Shelves Included
2
Maximum Load Capacity per Shelf
44.1 lb
Color
Silver
Minimum Back Clearance
7 7/8 in
Minimum Top Clearance
5 7/8 in
Number of Temperature Settings
1
Timer Duration - Maximum
99 day
Maximum Number of Shelves
8
Temperature Setting - Maximum
300 Degrees C
Temperature Uniformity
+/-1.9 Degrees C
Shelving Material
Stainless Steel
Minimum Side Clearance
2 in

Description

Universal Oven, Convection Type Gravity, Temp. Range (C) At least 5 Degrees C above ambient up to +300 Degrees C, Overall Height 43 1/2 in, Overall Width 29 1/4 in, Overall Depth 25 1/4 in, Temp. Accuracy Up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 28.3 in, Chamber Width 22 in, Chamber Depth 15.7 in, Amps 15.7 A, Hz 50/60, Voltage 115V AC, Watts 1,800 W, Capacity (Cu.-Ft.) 5.9, Capacity (ML) 161,000, Programmable Yes, Temp. Uniformity +/-1.9 Degrees C
