  11. Program Unrvsl Oven, 28.3inx22inx15.7in

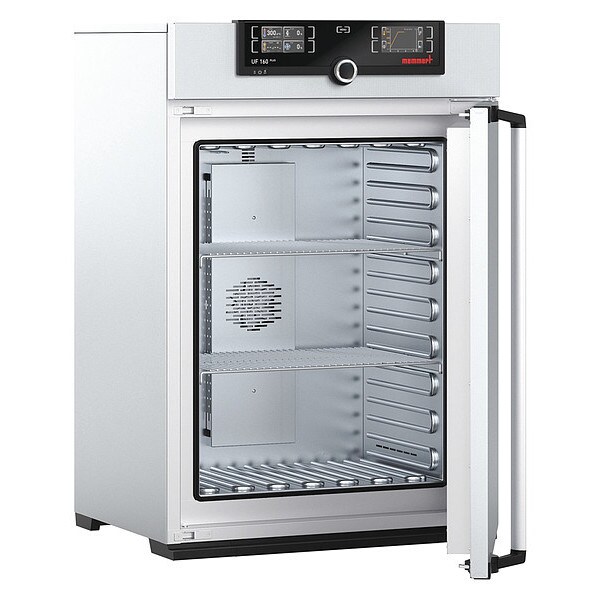

Memmert Program Unrvsl Oven, 28.3inx22inx15.7in UF 160 Plus - main

Program Unrvsl Oven, 28.3inx22inx15.7in

  • Mfr # UF 160 Plus

  • Zoro # G6696864

product price: $8,599.99
/ea
Item requires special delivery charges. A $60.00 per item surcharge will be applied.

Key Features

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Convection Type
Forced Air
Capacity
5.9 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UF 160 Plus
Zoro #
G6696864
UPC #
-
Country of Origin
Germany

Dimensions

Overall Depth
25 1/4 in
Overall Height
43 1/2 in
Overall Width
29 1/4 in
Manufacturers Warranty Length
3 yr
Chamber Width
22 in
Chamber Height
28.4 in
Inside Usable Dimensions
28.3"H x 22"W x 15.7"D
Overall Dimensions
43.5"H x 29"W x 23"D
Chamber Depth
15.8 in
Interior Height
28 1/4 in
Interior Width
22 in
Interior Depth
14 1/4 in

Details

Item
Programmable Universal Oven
Convection Type
Forced Air
Capacity
5.9 cu ft
Volume
5.87 cu ft
Wattage
3,200 W
Voltage
115V AC
Features
PID Controller
Standards
CE, DVEGS, EAC, UL
Programmable
Yes
Number of Shelves
2
Power Consumption
2200W
Number of Doors
1
Capacity (Cu.-Ft.)
5.9
Capacity (ML)
161,000
Temp. Range
Ambient +10C to 300C
Door Material
Stainless Steel
Temp. Range (C)
At least 10 Degrees C above ambient up to +300 Degrees C
Shelf Capacity
44 lb
Watts
1,800 W
Temp. Recovery Time
8 to 26 min.
Power Requirement
115V, 50/60 Hz
Includes
(2) Stainless Steel Grids
Hz
50/60
Chamber Material
Stainless Steel
Thermostat
PT 100 Sensor
Amps
19.1 A
Material
ASTM 304 Stainless Steel
Special Features
Color Touch Screen Controller, Double Over Temperature Protection, Ethernet Interface for Reading Out Protocol Log, Internal Data Logger with A Storage Capacity of At Least 10 Years, Stainless Steel Housing and Exterior, User Adjustable Calibration Values
Temp. Uniformity
+/-1.9 Degrees C
Housing Material
Stainless Steel
Preheat Time
25 to 68 min.
Temp. Accuracy
up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C
Color
Silver
Temperature Setting - Minimum
20 Degrees C
Minimum Top Clearance
5 7/8 in
Minimum Back Clearance
7 7/8 in
Temperature Uniformity
+/-1.9 Degrees C
Maximum Number of Shelves
8
Shelving Material
Stainless Steel
Product Type
Universal Oven
Timer Duration - Minimum
1 min
Temperature Accuracy Tolerance
+/-0.1 Degrees C up to 99.9 Degrees C, +/-0.5 Degrees C @ 100 Degrees C+
Temperature Setting - Maximum
300 Degrees C
Timer Duration - Maximum
99 day
Minimum Side Clearance
2 in
Maximum Load Capacity per Shelf
44.1 lb
Housing Finish
Zinc Plated
Number of Shelves Included
2
Current
19.1 A
Number of Temperature Settings
1
Shelving Type
Grid
Interior Material
Stainless Steel
Display Type
Digital
Frequency
50/60 Hz
Control Type
Touch Screen

Description

Programmable Universal Oven, Convection Type Forced Air, Temp. Range (C) At least 10 Degrees C above ambient up to +300 Degrees C, Overall Height 43 1/2 in, Overall Width 29 1/4 in, Overall Depth 25 1/4 in, Temp. Accuracy up to 99.9 Degrees +/-0.1 Degrees C / from 100 Degrees +/-0.5 Degrees C, Chamber Height 28.4 in, Chamber Width 22 in, Chamber Depth 15.8 in, Amps 19.1 A, Hz 50/60, Voltage 115V AC, Watts 1,800 W, Capacity (Cu.-Ft.) 5.9, Capacity (ML) 161,000, Programmable Yes
