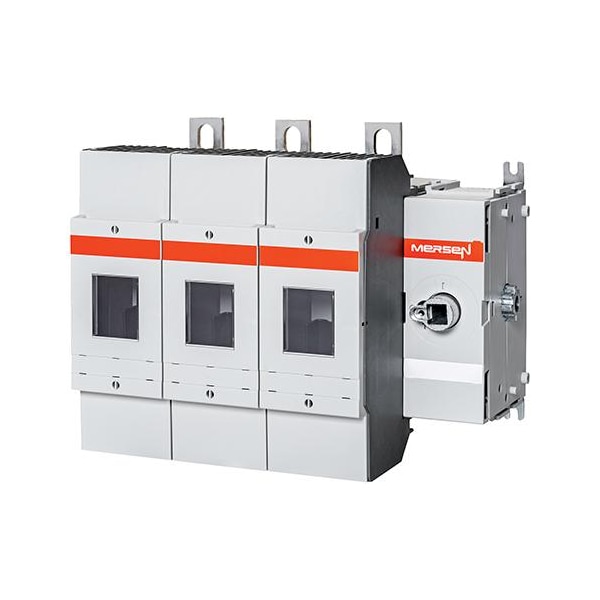

Disconnect Switch, Fusible, 3P, Three Phase

Name: Disconnect Switch, Fusible, 3P, Three Phase
Brand: Mersen
SKU: G9041389
Price: 1401.99 USD
Availability: InStock

1,401.99

/ea

Free Shipping & Returns

Protection Method

Fusible

Contact Form

Current Rating

200 A

Phase

Three

For Fuse Class

Class J

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: M200J30
Zoro #: G9041389
UPC #: -
Country of Origin: Finland
Item: Disconnect Switch
Protection Method: Fusible
Contact Form: 3P
Current Rating: 200 A
Phase: Three
For Fuse Class: Class J
Voltage: 600 V
Standards: UL Listed guide WHTY, File E191605; IEC 60947-3
Rated Insulation Voltage: 1000 V
Installation Mounting: Direct Screw Mount
Short Circuit Current Rating Sccr: 200 kA
Short Circuit Rating Class J: 200 kA
Number Of Poles: 3-Pole
Rated Voltage Ac Ul: 600 V
Wire Connections: Terminal
Contact Type: Double Break
Connection Terminal Type: Blade
Min Operating Temp: -5 °C
Max Operating Temp: 40 °C
Max Storage Temp: 55 °C
Short Circuit Rating Standalone: 200 kA
Min Storage Temp: -25 °C
Rated Voltage Dc Ul: 250 V
Short Circuit Current Rating (SCCR): 200 kA
Short Description: Class J Fused Disconnect 600V 200A 3 Pole 3-0 Pole Configuration
Short Circuit Rating (Class J): 200 kA
Max Horsepower Rating/FLA: 3-Phase: 240V 60HP, 480V 125HP, 600V 150HP
Short Circuit Rating (Standalone): 200 kA

Switch.fus 200A J R 3+0 pos.
