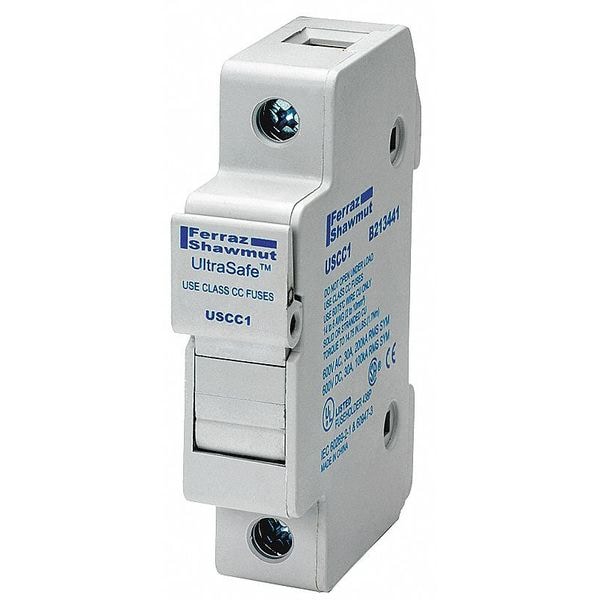

Finger Safe Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Pressure Plate

  • Mfr # USCC1

  • Zoro # G1689931

CAD Available
product price:
$
18.15
/ea

Key Features

CAD Drawing
UL Class
CC
Series
USCC
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
USCC1
Zoro #
G1689931
UPC #
782001829865
Country of Origin
China
CAD Available
Yes
Item
Finger Safe Fuse Block
UL Class
CC
Series
USCC
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Pressure Plate
Mounting Style
DIN-Rail
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Fuse Block Design
Finger-Safe
Body Material
Polyamide
Standards
CSA Certified, UL Listed
Fuse Holder Code
D/W
For Fuse Series
ATDR, ATMR, ATQR
Fuse Type
Industrial
Fits Fuse Type
Class CC
Wire Range
14 AWG to 6 AWG
Short Circuit Current (KA)
200 kA
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Includes Auxiliary Contact
No
Includes Communication Feature
No
Fits Fuse Block Style
Rejection
Rated Torque (In.-Lb.)
15 lb-in
Fuse Installation Method
Clip-in
Installation Mounting
DIN Rail
Short Circuit Current Rating (SCCR)
200 kA
Wiring range
Cu #6-14
APPROVALS & STANDARDS
UL Listed to Standard 4248- 4 (class CC) and UL Recognized to Standard 4248-1 (midget), File E52283; UL Listed to standard 4248-18 (photovoltaic), File E347822; CSA Certified C22.2; IEC 60269-2-1 and 60947-3 Compliant (USM only)
Frequency
50/60 Hz
Short Description
Fuse Holders 600V 30A Class CC 1-pole No Indicator
APPLICATIONS
All circuits up to 600 volts for motors, control circuits, transformers, etc...; DC circuits up to 1000VDC including photovoltaic applications; Non-load disconnect
Torque Rating
15 lb-in
Max Fuse Rating
30 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Maximum
30 A
Current - Minimum
0 A

Description

Fuse Block, Fits Fuse Type Class CC, Fuse UL Class CC, 0 to 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series ATDR, ATMR, ATQR, CCMR, FNQ-R, KLDR, KLKR, KTK-R, LP-CC, Series USCC, Non-Indicating, Rejection, Fuse Block Design Finger-Safe, Wire Range 14 to 6 AWG, Mounting Style DIN Rail, Body Material Polyamide, Connector Type Pressure Plate, Height 2.32 in, Width 0.69 in, Length 3.07 in, Standards CSA Certified, UL Listed
