  5. Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Crimp, Double Set Screw

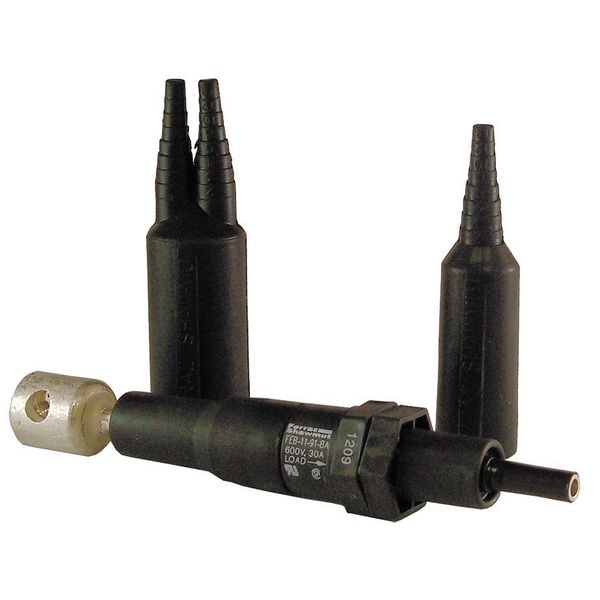

Mersen Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Crimp, Double Set Screw FEB-11-91-BA - main

Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Crimp, Double Set Screw

  • Mfr # FEB-11-91-BA

  • Zoro # G2815967

product price:  $66.65
/ea

Key Features

Series
FEB
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Crimp, Double Set Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FEB-11-91-BA
Zoro #
G2815967
UPC #
782001300791
Country of Origin
Mexico

Dimensions

Wire Size
14 to 8 AWG; (2) 12 to 2 AWG
Length
6.10 in
Height
1.12 in
Width
1.12 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Overall Length
6.1 in
Overall Height
1.12 in
Overall Width
1.12 in

Details

Item
Fuse Holder
Series
FEB
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Crimp, Double Set Screw
Mounting Style
In-Line
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design
Breakaway with Boots
Body Material
PBT
For Fuse Series
ATQ, ATM, TRM, OTM, GGU, A13x-2, A25Z-2, A60Q-2, DCT, A6Y-2B
Standards
CSA, UL-R
Fuse UL Class
Midget
Fuse Type
Midget and CC Class
Fuse Block or Fuse Holder Type
Fuse Holder
Fits Fuse Type
Midget
Rated Torque (In.-Lb.)
35 lb-in
Short Circuit Current (KA)
100 kA
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Wire Range
14 AWG to 8 AWG, 12 AWG to 2 AWG
Fits Fuse Block Style
Non-Rejection
Max. Voltage
600V AC/DC
Max. Amps
30A
Max Fuse Rating
30 A
Ampere Rating
30 A
Fuse Block or Holder DC Voltage Rating
600VDC
Installation Mounting
In-Line
Torque Rating
35 lb-in
Fuse Installation Method
Clip-in
Frequency
50/60 Hz
Fuse Block or Holder AC Voltage Rating
600VAC
Short Description
Fuse Bases 600V 30A Midget 1-pole 11-91 Breakaway Crimp / Double Set Screw
APPROVALS & STANDARDS
UL Listed Class CC Guide IZLT, File E52283; UL Recognized Component Midget Guide IZLT2, File E52283; CSA Certified Class CC and Midget Class 6225, File 32169
APPLICATIONS
Street lighting; Parking lot lighting; Traffic signaling; Sports lighting; Boats and marinas; Humid/corrosive environments
Short Circuit Current Rating (SCCR)
100 kA
AC Voltage Rating
600 V AC
Current - Maximum
30 A
Current - Minimum
0 A
DC Voltage Rating
600 V DC

Description

In-Line Fuse Holder, Fits Fuse Type Midget, Fuse UL Class Midget, 0 to 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series AGU, ATM, ATQ, BAF, BLF, BLN, FLM, FLQ, FNM, FNQ, GGU, HC10S, KLK, KLKD, KLM, KTK, OTM, TRM, Series FEB, Non-Indicating, Non-Rejection, Fuse Block Design Breakaway with Boots, Wire Size 14 to 8 AWG; (2) 12 to 2 AWG, Wire Length Not Applicable, Mounting Style Inline, Body Material Thermoplastic, Connector Type Crimp/Setscrew
