  5. Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Crimp

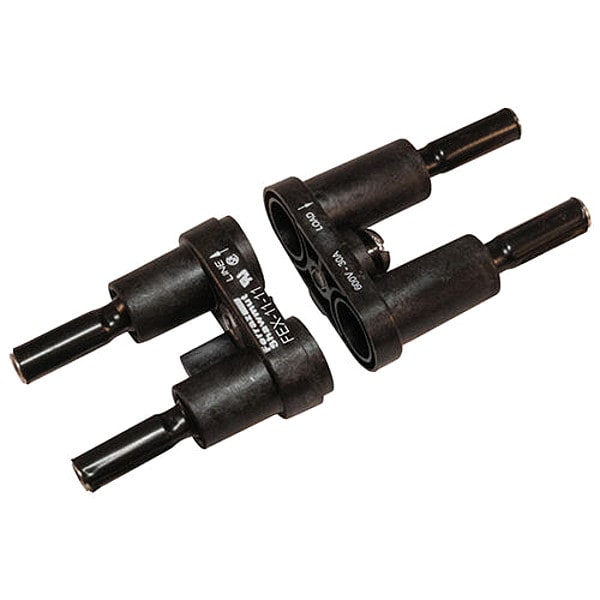

Mersen Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Crimp FEX-11-11-BA - main

Fuse Holder, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 2 Poles, Crimp

  • Mfr # FEX-11-11-BA

  • Zoro # G1554034

product price:  $143.99
/ea
Free Shipping & Returns

Key Features

Series
FEX
Number of Poles
2
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Crimp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FEX-11-11-BA
Zoro #
G1554034
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
14 to 8 AWG
Width
2.15 in
Height
1 in
Length
5.60 in
For Fuse Size
1-1/2 in L x 13/32 in dia
Overall Height
0.99 in
Overall Length
5.6 in
Overall Width
2.15 in

Details

Item
Fuse Holder
Series
FEX
Number of Poles
2
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Connector Type
Crimp
Mounting Style
In-Line
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Fuse Block Design

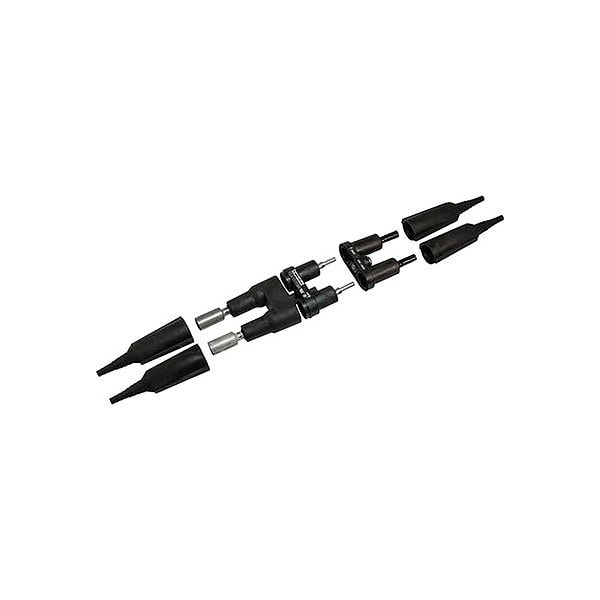

Breakaway with Boots
Body Material
PBT
Fuse Type
Midget
Standards
CSA, UL-R
For Fuse Series
ATQ, ATM, TRM, OTM, GGU, A13x-2, A25Z-2, A60Q-2, DCT, A6Y-2B
Fuse Block or Fuse Holder Type
Fuse Holder
Fuse UL Class
Midget
Fits Fuse Type
Midget
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
100 kA
Frequency Range (Hz)
50/60 Hz
Short Circuit Current Rating (SCCR)
100 kA
Installation Mounting
In-Line
Short Description
Fuse Bases 600V 30A Midget 2-pole 11-11 Breakaway Crimp
Max Fuse Rating
30 A
APPLICATIONS
Street lighting; Parking lot lighting; Traffic signaling; Sports lighting; Boats and marinas; Humid/corrosive environments
Ampere Rating
30 A
APPROVALS & STANDARDS
UL Listed Class CC Guide IZLT, File E52283; UL Recognized Component Midget Guide IZLT2, File E52283; CSA Certified Class CC and Midget Class 6225, File 32169
Fuse Installation Method
Clip-in
Frequency
50/60 Hz
Max. Amps
30A
Wire Range
14 AWG to 8 AWG
Fits Fuse Block Style
Non-Rejection
Max. Voltage
600V AC/DC
Fuse Block or Holder DC Voltage Rating
600VDC
Fuse Block or Holder AC Voltage Rating
600VAC
Current - Maximum
30 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Minimum
0 A

Description

In-Line Fuse Holder, Fits Fuse Type Midget, Fuse UL Class Midget, 0 to 30 A, Number of Poles 2, 600V AC/DC, For Fuse Size 1-1/2 in L x 13/32 in dia, Compatible Fuse Series AGU, ATM, ATQ, BAF, BLF, BLN, FLM, FLQ, FNM, FNQ, GGU, HC10S, KLK, KLKD, KLM, KTK, OTM, TRM, Series FEB, Non-Indicating, Non-Rejection, Fuse Block Design Breakaway with Boots, Wire Size 14 to 8 AWG, Wire Length Not Applicable, Mounting Style Inline, Body Material Thermoplastic, Connector Type Crimp, Body Height 0.99 in
