  11. Glass Fuse, TRM Series, Time-Delay, 1.6A, 250V AC, 30A at 250V AC

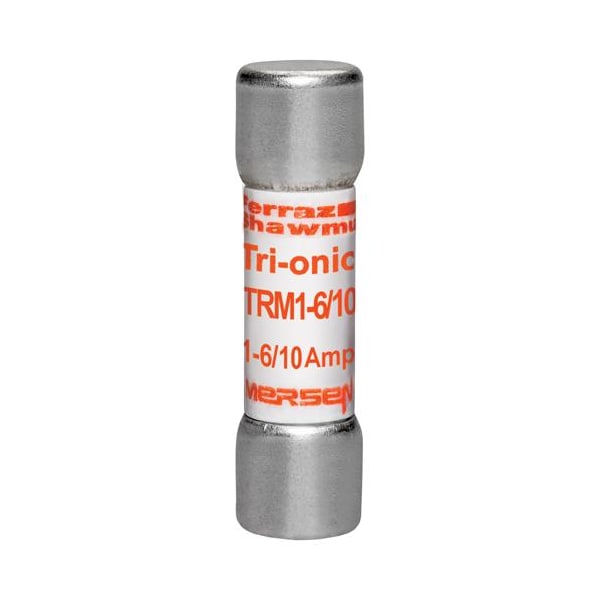

Mersen Glass Fuse, TRM Series, Time-Delay, 1.6A, 250V AC, 30A at 250V AC TRM1-6/10 - main

Glass Fuse, TRM Series, Time-Delay, 1.6A, 250V AC, 30A at 250V AC

  • Mfr # TRM1-6/10

  • Zoro # G0908809

product price: $7.69
/ea

Key Features

Series
TRM
Speed
Time-Delay
Amps
1.6A
AC Voltage Rating
250V AC
Interrupt Rating
30A at 250V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TRM1-6/10
Zoro #
G0908809
UPC #
-
Country of Origin
Mexico

Dimensions

Diameter
13/32 in
Length
1-1/2 in
Overall Length
1 1/2 in
Overall Diameter
13/32 in

Details

Series
TRM
Speed
Time-Delay
Amps
1.6A
AC Voltage Rating
250V AC
Interrupt Rating
30A at 250V AC
Body Style
Cylindrical
Body Material
Glass
Item
Glass Fuse
Standards
CSA Certified Standard C22.2 No. 248.14, UL Listed Standard 248-14 File E33925
Class
Midget
Mounting
Clip
Connection Type
Ferrule
Weight
0.012 lb
Connection/Terminal Type
Ferrule
Connection/Terminal Material
Tin-Plated Copper
APPROVALS & STANDARDS
UL listed to standard 248-14 File E33925; CSA Certified to Standard C22.2 No. 248.14
AC Max I.R./Breaking Capacity: I1
10 kA
Item Description (ERP)
250V 1 6/10A 1 1/2x13/32 MID T
Short Description
Fuse Tri-Onic® 250V 1.6A Time-Delay Midget TRM Series
APPLICATIONS
Small motors; Small transformers; Lighting circuits; Control circuits
Interrupt Rating - AC
10 kA
Current
1.6 A

Description

Midget Fuse 6/10A 1 1 250V, 1.6 A, 250 V AC, Class Midget, TRM Series, Time-Delay, Body Style Cylindrical, Interrupt Rating 30 A at 250V AC, Fuse Size 1 1/2 in L x 13/32 in dia, Length 1 1/2 in, Diameter 13/32 in, Body Material Glass, Standards CSA Certified Standard C22.2 No. 248.14, UL Listed Standard 248-14 File E33925

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
