  11. Medium Voltage Fuse, 1/2A, Time-Delay, 15,500V AC, Cylindrical

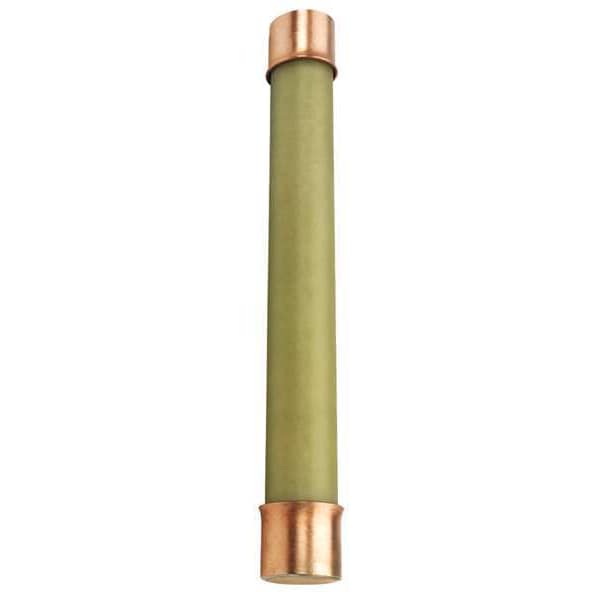

Mersen Medium Voltage Fuse, 1/2A, Time-Delay, 15,500V AC, Cylindrical 9F60BHH905 - main

Medium Voltage Fuse, 1/2A, Time-Delay, 15,500V AC, Cylindrical

  • Mfr # 9F60BHH905

  • Zoro # G4303327

product price: $299.51
/ea
Free Shipping & Returns

Key Features

Series
9F60
Speed
Time-Delay
AC Voltage Rating
15,500V AC
DC Voltage Rating
Not Rated
Body Style
Cylindrical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9F60BHH905
Zoro #
G4303327
UPC #
782001398088
Country of Origin
Mexico

Dimensions

Diameter
12-7/8"
Length
1-9/16"
Overall Diameter
12 7/8 in
Overall Length
1 9/16 in

Details

Item
Medium Voltage Fuse
Series
9F60
Amps
1/2A
Speed
Time-Delay
AC Voltage Rating
15,500V AC
DC Voltage Rating
Not Rated
Body Style
Cylindrical
Visual Indication
Indicating
Interrupt Rating
120kA (Sym.) at 15,500V AC
Body Material
Epoxy
Equivalent Brand and Series
Mersen 9F60
Equivalent Series
9F60
Fits Fuse Block Style
Non-Rejection
Mounting
Clip
Class
E-Rated
Element
Single
Connection/Terminal Material
Copper
APPLICATIONS
Primary protection for potential transformers (PT) or control power transformers (CPT)
Indication System
Yes
AC Max I.R./Breaking Capacity: I1
50 kA
Body/Insulating Material
Epoxy
Connection/Terminal Type
Ferrule
Indication System Type
Visual Indicator
Connection Type
Ferrule
Interrupt Rating - AC
120 kA
Current
500 mA

Description

Medium Voltage Fuse, 1/2 A, 15.5 kV AC, Not Applicable, Class E-Rated, 9F60 Series, Indicating, Time-Delay, Body Style Cylindrical, Non-Rejection, Interrupt Rating 120kA (Sym.) at 15,500V AC, Fuse Size 1-9/16 in L x 12-7/8 in dia, Length 1 9/16 in, Diameter 12 7/8 in, Equivalent Brand and Series Mersen 9F60, Equivalent Series 9F60, Body Material Epoxy, Single Element
