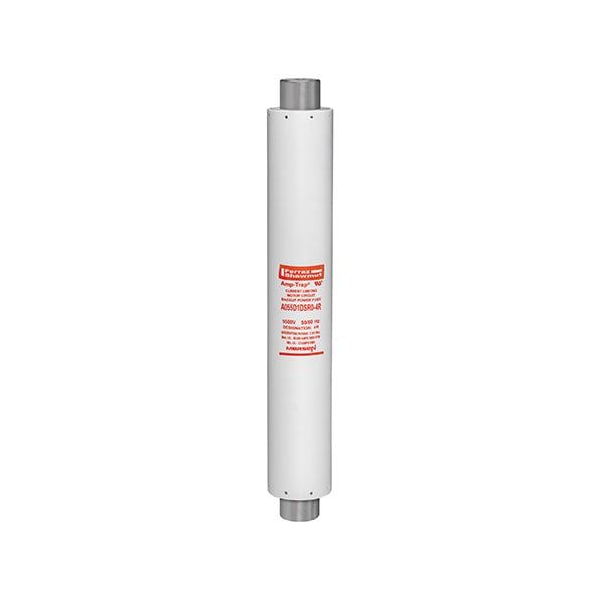

Medium-Voltage Fuse, A055 Series, R-Rated, 5500V AC, Cylindrical

  • Mfr # A055D1DSR0-4R

  • Zoro # G9035822


product price: $1,083.42
/ea
Free Shipping & Returns

Key Features

Series
A055
Speed
R-Rated
AC Voltage Rating
5500V AC
DC Voltage Rating
Not Rated
Body Style
Cylindrical
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A055D1DSR0-4R
Zoro #
G9035822
UPC #
782001325770
Country of Origin
Mexico

Dimensions

Diameter
2.88 in
Length
20 in

Details

Item
Medium-Voltage Fuse
Series
A055
Speed
R-Rated
AC Voltage Rating
5500V AC
DC Voltage Rating
Not Rated
Body Style
Cylindrical
Visual Indication
Indicating
Interrupt Rating
100kA
Body Material
GMG
Standards
ANSI DIN 442
Fuse Voltage Rating
5500V
Fuse Speed
R-Rated
Class
R-Rated
Connection Type
Clip
Operating Temp. Range
80 °C
Mounting
Clip
Storage Temp. Range
-25 to 80 °C
Connection Material
Silver-Plated Brass
AC Max I.R./Breaking Capacity: I1
100 kA
Rated voltage AC UL
5500 V
APPROVALS & STANDARDS
UL recognized component File E93367
APPLICATIONS
Short circuit protection of medium voltage motors and motor controllers
Body/Insulating Material
GMG
Connection/Terminal Type
Clip
Connection/Terminal Material
Silver-Plated Brass

Description

Fuse 5.5KV,442mm,3DIA,MV 4R

Restrictions
