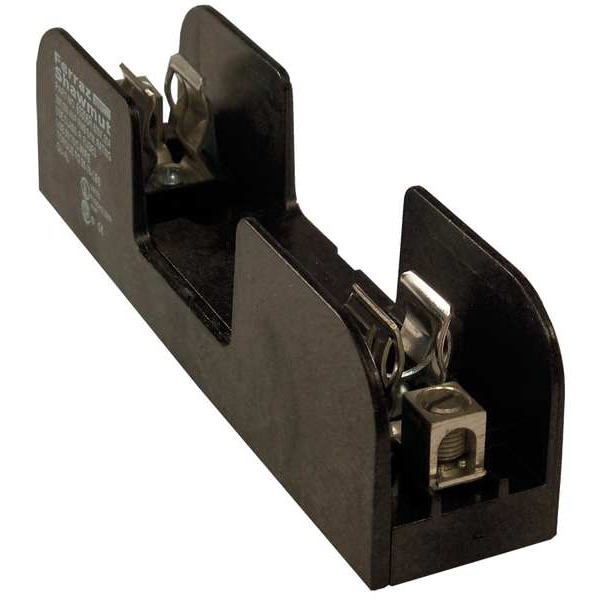

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug
Mfr # 60306R
Zoro # G2442316
product price:Â
$
22.89
/ea
Key Features
UL Class
R
Series
6HKRFB
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 60306R
- Zoro #
- G2442316
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Wire Size
- 14 to 2 AWG
- Width
- 1.63 in
- Length
- 1.61 in
- Height
- 2 in
- For Fuse Size
- 5 in L x 13/16 in dia
- Mounting Hole Dia.
- 1/4 in
- Overall Width
- 7 in
- Wire Size - Maximum
- 2 AWG
- Overall Height
- 2 in
- Wire Size - Minimum
- 14 AWG
- Overall Length
- 1.61 in
- Wire Rope Length
- 1.61 in
Description
Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 0 to 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 5 in L x 13/16 in dia, Compatible Fuse Series A6D-R, A6K-R, FRS-R, KLSR, KTS-R, KWS-R, LLSRK, LPS-RK, TRS-R, Series 6HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2 in, Width 7 in, Length 1.61 in, Spring Reinforced Clip Yes
