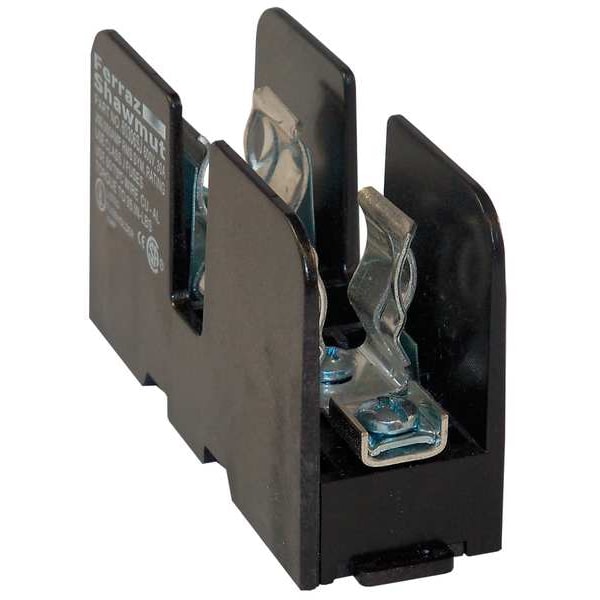

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Pressure Plate

  • Mfr # 60326SJ
  • Zoro # G2891673
product price:
$
14.94
/ea

Key Features

UL Class
J
Series
SJ
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC, 600V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
60326SJ
Zoro #
G2891673
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
J
Series
SJ
Number of Poles
1
Amp Range
0 to 30A
Voltage Rating
600V AC, 600V DC
Connector Type
Pressure Plate
Mounting Style
Bolt-Down, DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Fuse Holder Code
Z
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
For Fuse Series
AJT, A4J, HSJ
Features
Space Saver
Fits Fuse Type
Class J
Wire Range
14 AWG to 10 AWG
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
Max Fuse Rating
30 A
Fuse Block or Holder AC Voltage Rating
600VAC
Fuse Block or Holder DC Voltage Rating
600VDC
Short Description
Fuse Bases 600V 30A Class J 1-pole Tin-Plate CU Pressure Plate with Reinf Clip
Installation Mounting
Screw Mount or DIN Rail
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Short Circuit Current Rating (SCCR)
200
Fuse Installation Method
Clip-in
Rated Torque (In.-Lb.)
20 lb-in
APPLICATIONS
Class J Blocks (600V) use with AJT, A4J, HSJ; Volts: 600VAC/DC; Amps: 30A, 60A, 100A; 200A, 400A, 600A; SCCR: 200kA
Current - Maximum
30 A
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Minimum
0 A

Dimensions

Wire Size
14 to 4 AWG
Height
2.20 in
Length
3.90 in
Width
1.29 in
For Fuse Size
2-1/4 in L x 13/16 in dia
Mounting Hole Dia.
1/4 in
Overall Height
2.2 in
Wire Size - Minimum
14 AWG
Wire Size - Maximum
4 AWG
Overall Width
3.28 in
Overall Length
3.91 in
Wire Rope Length
3.91 in
Fits Chest Size
Space Saver

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 0 to 30 A, Number of Poles 1, 600V AC/DC, For Fuse Size 2 1/4 in L x 13/16 in dia, Compatible Fuse Series A4J; AJT; DFJ; HSJ; JKS; JLS; JTD; JTD-ID; LDFJ; LPJ; LPJ-I, Series SJ, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 4 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Glass Filled Polycarbonate, Connector Type Pressure Plate, Height 2.2 in, Width 3.28 in, Length 3.91 in, Spring Reinforced Clip Yes
