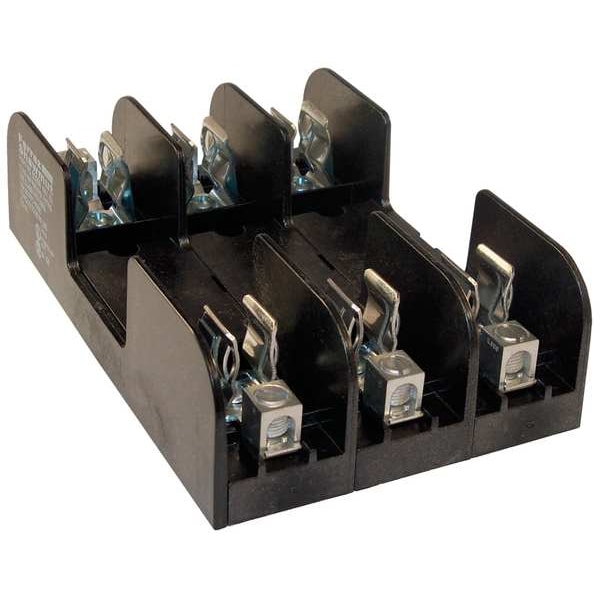

Open Fuse Block, 0 to 30A Amp Range, 600V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # 60308
Zoro # G3127302
CAD Available
product price: $42.45
/eaKey Features
CAD Drawing
UL Class
H; K5
Series
2HKRFB
Number of Poles
3
Amp Range
0 to 30A
Voltage Rating
600V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
60308
Zoro #
G3127302
UPC #
-
Country of Origin
Mexico
Dimensions
Width
4.55 in
Length
2 in
Height
7 in
For Fuse Size
5 in L x 13/16 in dia
Mounting Hole Dia.
1/4 in
Overall Width
4.55 in
Overall Height
7 in
Overall Length
2 in
Wire Size - Maximum
2 AWG
Wire Size - Minimum
14 AWG
Wire Size
14 to 2 AWG
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 0 to 30 A, Number of Poles 3, 600V AC/DC, For Fuse Size 5 in L x 13/16 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series 2HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 7 in, Width 4.55 in, Length 2 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
