  9. Open Fuse Block, 101 to 200A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

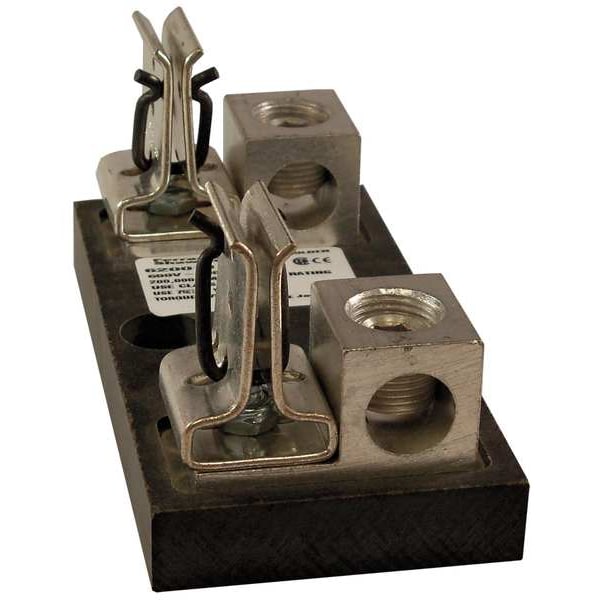

Mersen Open Fuse Block, 101 to 200A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug 62001J - main

CAD Drawings

Download CAD Files

Open Fuse Block, 101 to 200A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 62001J

  • Zoro # G2735187

CAD Available
product price: $159.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
101 to 200A
Voltage Rating
600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
62001J
Zoro #
G2735187
UPC #
782001758691
Country of Origin
Mexico

Dimensions

Width
3 in
Length
6.13 in
Height
2.91 in
For Fuse Size
5-3/4 in L x 1-5/8 in dia
Mounting Hole Dia.
5/16 in
Overall Length
6.13 in
Overall Width
3 in
Overall Height
2.91 in
Wire Size - Maximum
350 kcmil
Wire Size - Minimum
6 AWG

Details

CAD Available
Yes
Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
101 to 200A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Fuse Holder Code
AC
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
Features
Space Saver
For Fuse Series
AJT, A4J, HSJ
Wire Range
6 AWG to 350 MCM
Fits Fuse Type
Class J
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
375 lb-in
Fuse Block or Holder AC Voltage Rating
600VAC
Fuse Block or Holder DC Voltage Rating
600VDC
Max Fuse Rating
200 A
Short Circuit Current Rating (SCCR)
200
Installation Mounting
Direct Screw Mount
Fuse Installation Method
Clip-in
Short Description
Fuse Bases 600V 200A Class J 1-pole Tin-Plate Aluminum Box Side-Clip
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Current - Maximum
200 A
AC Voltage Rating
600 V AC
Current - Minimum
101 A
DC Voltage Rating
600 V DC

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 101 to 200 A, Number of Poles 1, 600V AC/DC, For Fuse Size 5 3/4 in L x 1 5/8 in dia, Compatible Fuse Series A4J; AJT; DFJ; HSJ; JKS; JLS; JTD; JTD-ID; LDFJ; LPJ; LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 350 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 2.91 in, Width 3 in, Length 6.13 in, Spring Reinforced Clip Yes, Features Space Saver
