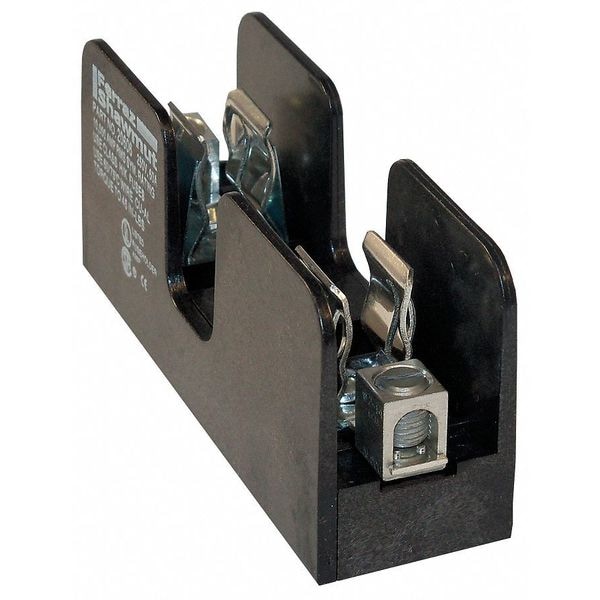

Open Fuse Block, 31 to 60A Amp Range, 250V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 20606
  • Zoro # G2337754

product price:
$
16.99
/ea

Key Features

UL Class
H; K5
Series
2HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
250V AC, 250V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20606
Zoro #
G2337754
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
H; K5
Series
2HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
250V AC, 250V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Standards
CSA Certified, UL Listed
Fuse Holder Code
K
Fuse Type
Industrial
For Fuse Series
OT, RF, NON, REN
Features
Spring Reinforced Clip
Wire Range
14 AWG to 2 AWG
Fits Fuse Type
Class H, Class K5
Short Circuit Current (KA)
50 kA
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
45 lb-in
Short Description
Fuse Bases 250V 60A Class H/K 1-pole Tin-Plate AL Box with Reinforced Clip
Short Circuit Current Rating (SCCR)
50
Fuse Installation Method
Clip-in
Max Fuse Rating
60 A
Installation Mounting
Direct Screw Mount
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Current - Maximum
60 A
DC Voltage Rating
250 V DC
Current - Minimum
31 A
AC Voltage Rating
250 V AC

Dimensions

Wire Size
14 to 2 AWG
Length
4-3/4 in
Width
1.46 in
Height
2.12 in
For Fuse Size
3 in L x 13/16 in dia
Mounting Hole Dia.
0.19 in
Wire Size - Maximum
2 AWG
Overall Width
1.46 in
Overall Height
2.12 in
Overall Length
4.75 in
Wire Size - Minimum
14 AWG
Wire Rope Length
4.75 in
Fits Chest Size
Spring Reinforced Clip

Description

Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 31 to 60 A, Number of Poles 1, 250V AC/DC, For Fuse Size 3 in L x 13/16 in dia, Compatible Fuse Series NLN, NON, OT, REN, RF, RLN, Series 2HKRFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 2 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.12 in, Width 1.46 in, Length 4.75 in, Spring Reinforced Clip Yes, Features Spring Reinforced Clip
