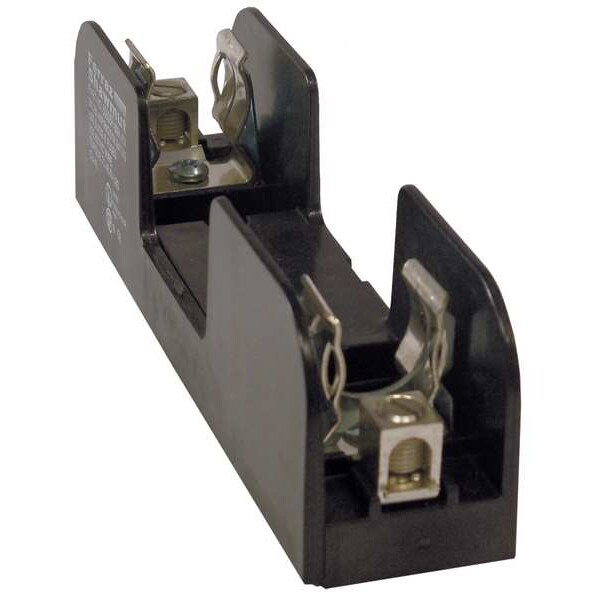

Open Fuse Block, 31 to 60A Amp Range, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 60656R

  • Zoro # G0268755

product price:  $39.19
/ea

Key Features

UL Class
R
Series
6HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
600V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
60656R
Zoro #
G0268755
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
14 to 4 AWG
Width
1.63 in
Length
4 in
Height
2.12 in
For Fuse Size
5-1/2 in L x 1-1/16 in dia
Mounting Hole Dia.
1/4 in
Overall Length
4 in
Wire Size - Minimum
14 AWG
Wire Size - Maximum
4 AWG
Overall Width
1.66 in
Overall Height
2.12 in
Wire Rope Length
4 in

Details

Item
Open Fuse Block
UL Class
R
Series
6HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Polycarbonate
For Fuse Series
A6D-R, A6K-R, TRS-R
Fuse Holder Code
Q
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
Fits Fuse Type
Class R
Wire Range
14 AWG to 4 AWG
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
Fits Fuse Block Style
Rejection
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fuse Installation Method
Clip-in
Max Fuse Rating
60 A
Installation Mounting
Direct Screw Mount
Rated Torque (In.-Lb.)
45 lb-in
Short Circuit Current Rating (SCCR)
200
Short Description
Fuse Bases 600V 60A Class R 1-pole Tin-Plate Copper Copper Box
Current - Maximum
60 A
DC Voltage Rating
600 V DC
Current - Minimum
31 A
AC Voltage Rating
600 V AC

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 31 to 60 A, Number of Poles 1, 600V AC/DC, For Fuse Size 5 1/2 in L x 1 1/16 in dia, Compatible Fuse Series A6D-R; A6K-R; FRS-R; KLSR; KTS-R; KWS-R; LLSRK; LPS-RK; TRS-R, Series 6HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 4 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.12 in, Width 1.66 in, Length 4 in, Spring Reinforced Clip Yes
