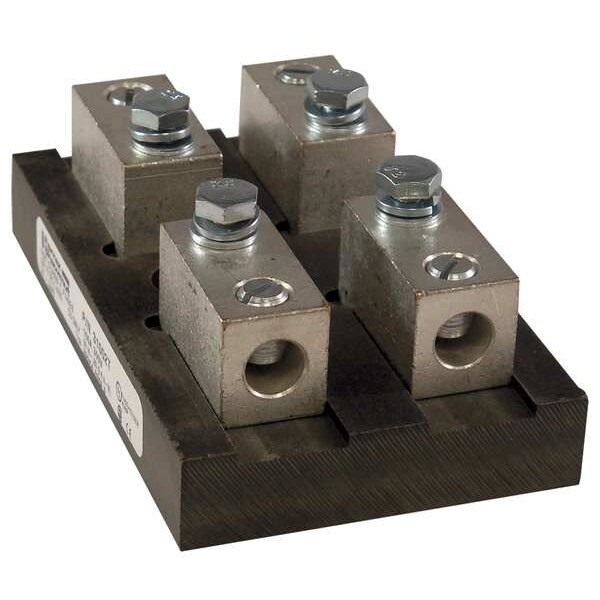

Open Fuse Block, 61 to 100A Amp Range, 300V AC/DC Volt Rating, 2 Poles, Box Lug

  • Mfr # 31002T

  • Zoro # G1502191

product price:  $183.99
/ea
Free Shipping & Returns

Key Features

UL Class
T
Series
3TFB
Number of Poles
2
Amp Range
61 to 100A
Voltage Rating
300V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31002T
Zoro #
G1502191
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
12 to 2 AWG
Height
1.95 in
Length
4.78 in
Width
3 in
For Fuse Size
2-5/32 in L x 13/16 in dia, 2-5/32 in L x 3/4 in dia
Mounting Hole Dia.
0.19 in
Overall Height
1.95 in
Overall Length
4.78 in
Wire Size - Maximum
2 AWG
Overall Width
3 in
Wire Size - Minimum
12 AWG
Wire Rope Length
4.78 in

Details

Item
Open Fuse Block
UL Class
T
Series
3TFB
Number of Poles
2
Amp Range
61 to 100A
Voltage Rating
300V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Polyester
For Fuse Series
A3T
Fuse Type
Industrial
Standards
CSA Certified, UL Listed
Features
Adder Block Design
Fits Fuse Type
Class T
Wire Range
12 AWG to 2 AWG
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Rated Torque (In.-Lb.)
50 lb-in
Max Fuse Rating
100 A
Short Circuit Current Rating (SCCR)
200
Short Description
Fuse Bases 300V 100A Class T 2-pole Tin-Plate Copper Box with Reinforced Clip
Installation Mounting
Direct Screw Mount
Fuse Installation Method
Clip-in
Current - Maximum
100 A
DC Voltage Rating
300 V DC
AC Voltage Rating
300 V AC
Current - Minimum
61 A

Description

Fuse Block, Fits Fuse Type Class T, Fuse UL Class T, 61 to 100 A, Number of Poles 2, 300V AC/DC, For Fuse Size 2 5/32 in L x 13/16 in dia, 2 5/32 in L x 3/4 in dia, Compatible Fuse Series A3T, JJN, JLLN, TJN, Series 3TFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 12 to 2 AWG, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 1.95 in, Width 3 in, Length 4.78 in, Spring Reinforced Clip Yes, Features Adder Block Design
