Shop MERSEN

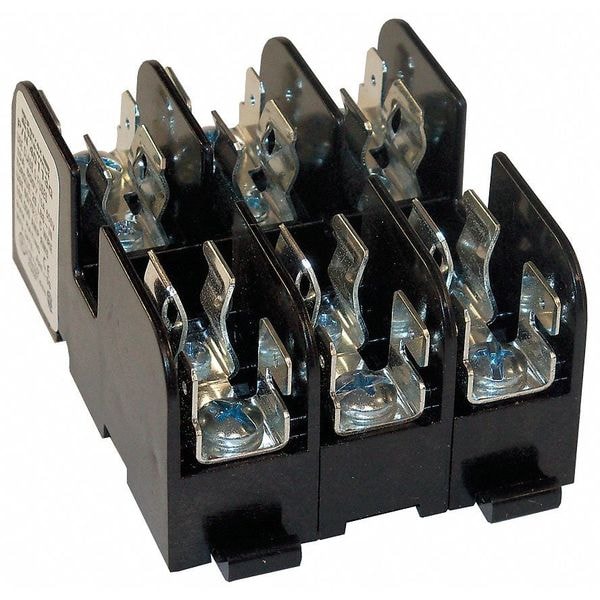

Open Fuse Block, G UL Class, 600V AC/DC Volt Rating, 3 Poles, Screw with Quick Connect

  • Mfr # 40113G

  • Zoro # G2661066

product price:
$
32.99
/ea

Key Features

UL Class
G
Series
GFB
Voltage Rating
600V AC/DC
Connector Type
Screw with Quick Connect
Mounting Style
Bolt-Down; DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
40113G
Zoro #
G2661066
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
14 to 10 AWG
Height
1.45 in
Length
3.05 in
Width
2.39 in
For Fuse Size
1-19/64 in L x 13/32 in dia
Overall Height
1.45 in
Overall Width
2.39 in
Wire Size - Minimum
14 AWG
Overall Length
3.05 in
Wire Size - Maximum
10 AWG
Wire Rope Length
3.05 in

Details

Item
Open Fuse Block
UL Class
G
Series
GFB
Number of Poles
3
Amp Range
0 to 15A
Voltage Rating
600V AC/DC
Connector Type
Screw with Quick Connect
Mounting Style
Bolt-Down; DIN Rail
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
No
Fuse Block Design
Open
Body Material
Polycarbonate
Fuse Type
Industrial
Fuse Holder Code
AG
Features
Adder Block Design
For Fuse Series
AG
Standards
CSA Certified, UL Listed
Wire Range
14 AWG to 10 AWG
Fits Fuse Type
Class G
Short Circuit Current (KA)
100 kA
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Fits Fuse Block Style
Non-Rejection
Rated Torque (In.-Lb.)
20 lb-in
Short Circuit Current Rating (SCCR)
100
Short Description
Fuse Bases 600V 15A Class G 3-pole Tin-Plate Copper Screw with Reinforced Clip
Wiring range
Cu #10-14
Installation Mounting
Screw Mount or DIN Rail
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL Listed guide IZLT, File E52283; CSA Certified class 6225, File 32169
Max Fuse Rating
15 A
Fuse Installation Method
Clip-in
AC Voltage Rating
600 V AC
DC Voltage Rating
600 V DC
Current - Maximum
15 A
Current - Minimum
0 A

Description

Fuse Block, Fits Fuse Type Class G, Fuse UL Class G, 0 to 15 A, Number of Poles 3, 600V AC/DC, For Fuse Size 1 19/64 in L x 13/32 in dia, Compatible Fuse Series AG; SC; SLC, Series GFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 14 to 10 AWG, Mounting Style Bolt-Down, DIN Rail, Body Material Glass Filled Polycarbonate, Connector Type Quick Connect, Screw, Height 1.45 in, Width 2.39 in, Length 3.05 in, Spring Reinforced Clip No, Features Adder Block Design
