  9. Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug

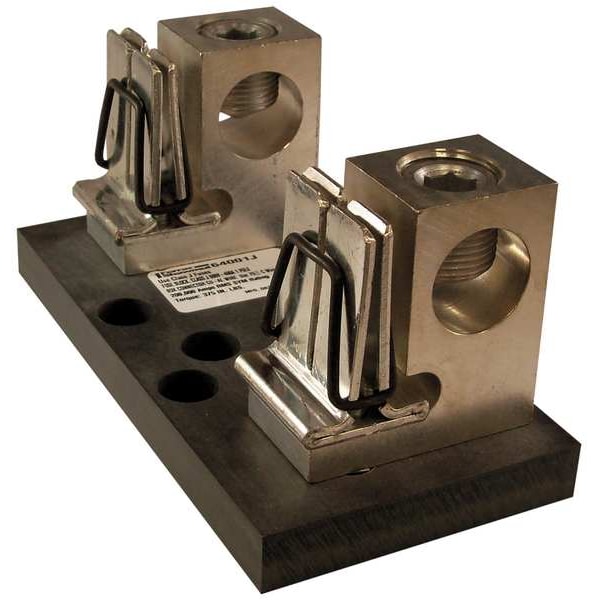

Mersen Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug 64001J - main

Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 64001J

  • Zoro # G1684216

product price: $250.99
/ea
Free Shipping & Returns

Key Features

UL Class
J
Series
JFB
Number of Poles
1
Amp Range
201 to 400A
Voltage Rating
600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
64001J
Zoro #
G1684216
UPC #
-
Country of Origin
Mexico

Dimensions

Height
3-3/4 in
Width
4 in
Length
8 in
For Fuse Size
7-1/8 in L x 2-1/8 in dia, 7-1/8 in L x 2 in dia
Mounting Hole Dia.
5/16 in
Overall Width
4 in
Overall Length
8 in
Overall Height
3.75 in
Wire Size
1000 AWG to 250 MCM

Details

Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
1
Amp Range
201 to 400A
Voltage Rating
600V AC/DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Standards
CSA Certified, UL Listed
Fuse Holder Code
AD
Fuse Type
Industrial
For Fuse Series
AJT, A4J, HSJ
Features
Space Saver
Fits Fuse Type
Class J
Wire Range
250 to 1000 MCM
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Short Circuit Current (KA)
200 kA
Fits Fuse Block Style
Non-Rejection
Fuse Block or Holder DC Voltage Rating
600VDC
Short Description
Fuse Bases 600V 400A Class J 1-pole Tin-Plate Aluminum Box Side-Clip
Rated Torque (In.-Lb.)
375 lb-in
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Max Fuse Rating
400 A
Installation Mounting
Direct Screw Mount
Fuse Block or Holder AC Voltage Rating
600VAC
Fuse Installation Method
Clip-in
Short Circuit Current Rating (SCCR)
200
Current - Maximum
400 A
DC Voltage Rating
600 V DC
AC Voltage Rating
600 V AC
Current - Minimum
201 A

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 201 to 400 A, Number of Poles 1, 600V AC/DC, For Fuse Size 7 1/8 in L x 2 1/8 in dia, 7 1/8 in L x 2 in dia, Compatible Fuse Series A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 1000 AWG to 250 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 3.75 in, Width 4 in, Length 8 in, Spring Reinforced Clip Yes
