  9. Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 3 Poles, Side-Clip

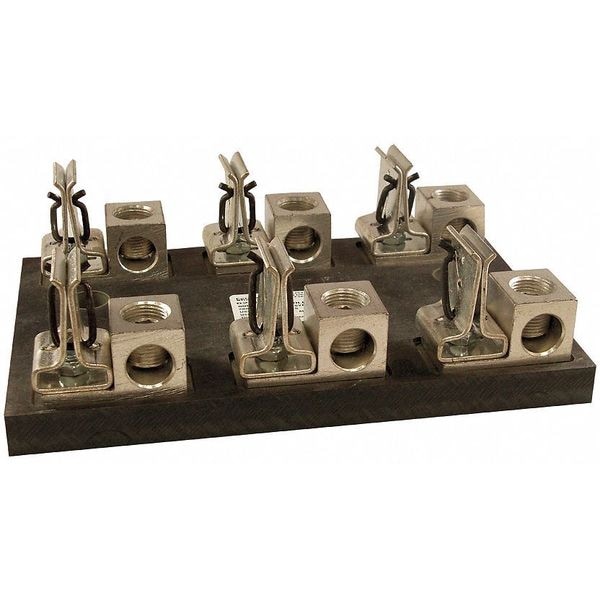

Mersen Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 3 Poles, Side-Clip 62003J - main

Open Fuse Block, J UL Class, 600V AC/DC Volt Rating, 3 Poles, Side-Clip

  • Mfr # 62003J

  • Zoro # G2260465

product price: $329.27
/ea
Free Shipping & Returns

Key Features

UL Class
J
Series
JFB
Number of Poles
3
Amp Range
101 to 200A
Voltage Rating
600V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
62003J
Zoro #
G2260465
UPC #
782001758677
Country of Origin
Mexico

Dimensions

Length
6.13 in
Height
2.91 in
Width
9.63 in
For Fuse Size
5-3/4 in L x 1-5/8 in dia
Mounting Hole Dia.
5/16 in
Overall Height
2.91 in
Overall Width
9.63 in
Overall Length
6.13 in
Wire Size - Minimum
6 AWG
Wire Size - Maximum
350 kcmil

Details

Item
Open Fuse Block
UL Class
J
Series
JFB
Number of Poles
3
Amp Range
101 to 200A
Voltage Rating
600V AC/DC
Connector Type
Side-Clip
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Non-Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Phenolic
Features
Space Saver
Standards
CSA Certified, UL Listed
Fuse Holder Code
AC
For Fuse Series
AJT, A4J, HSJ
Fuse Type
Industrial
Wire Range
6 AWG to 350 MCM
Fits Fuse Type
Class J
Short Circuit Current (KA)
200 kA
Frequency Range (Hz)
50/60 Hz
Max. Operating Temp.
80 deg C
Fits Fuse Block Style
Non-Rejection
Installation Mounting
Direct Screw Mount
Fuse Block or Holder AC Voltage Rating
600VAC
Fuse Installation Method
Clip-in
Max Fuse Rating
200 A
Fuse Block or Holder DC Voltage Rating
600VDC
APPROVALS & STANDARDS
All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
Short Description
Fuse Bases 600V 200A Class J 3-pole Tin-Plate Aluminum Box Side-Clip
Short Circuit Current Rating (SCCR)
200
Rated Torque (In.-Lb.)
375 lb-in
AC Voltage Rating
600 V AC
Current - Minimum
101 A
Current - Maximum
200 A
DC Voltage Rating
600 V DC

Description

Fuse Block, Fits Fuse Type Class J, Fuse UL Class J, 101 to 200 A, Number of Poles 3, 600V AC/DC, For Fuse Size 5 3/4 in L x 1 5/8 in dia, Compatible Fuse Series A4J, AJT, DFJ, HSJ, JKS, JLS, JTD, JTD-ID, LDFJ, LPJ, LPJ-I, Series JFB, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 6 AWG to 350 MCM, Mounting Style Bolt-Down, Body Material Phenolic, Connector Type Box Lug, Height 2.91 in, Width 9.63 in, Length 6.13 in, Spring Reinforced Clip Yes, Features Space Saver
