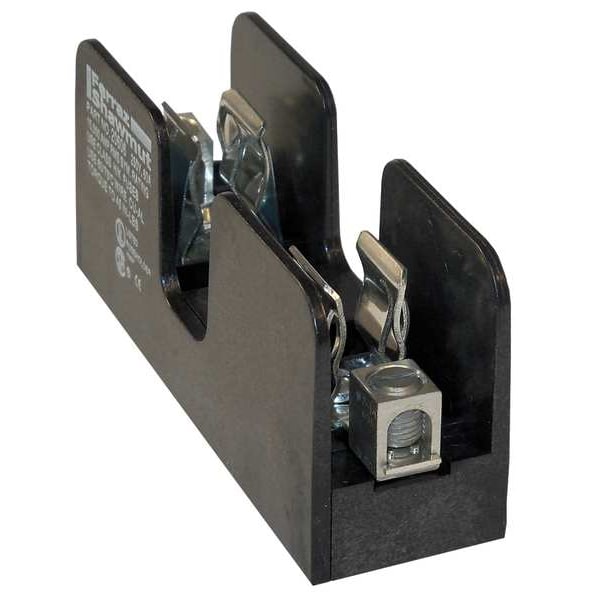

Open Fuse Block, R UL Class, 250V AC/DC Volt Rating, 1 Poles, Box Lug

  • Mfr # 20656R
  • Zoro # G3013683
product price:
$
24.69
/ea

Key Features

UL Class
R
Series
2HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
250V AC, 250V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
20656R
Zoro #
G3013683
UPC #
-
Country of Origin
Mexico
Item
Open Fuse Block
UL Class
R
Series
2HKRFB
Number of Poles
1
Amp Range
31 to 60A
Voltage Rating
250V AC, 250V DC
Connector Type
Box Lug
Mounting Style
Bolt-Down
Visual Indication
Non-Indicating
Fuse Block Style
Rejection
Spring Reinforced Clip
Yes
Fuse Block Design
Open
Body Material
Glass Filled Polycarbonate
Fuse Holder Code
K
Standards
CSA Certified, UL Listed
Fuse Type
Industrial
For Fuse Series
A2D-R, A2K-R, TR-R
Wire Range
14 AWG to 4 AWG
Fits Fuse Type
Class R
Max. Operating Temp.
80 deg C
Frequency Range (Hz)
50/60 Hz
Short Circuit Current (KA)
200 kA
Fits Fuse Block Style
Rejection
Short Circuit Current Rating (SCCR)
200
Fuse Installation Method
Clip-in
Installation Mounting
Direct Screw Mount
Fuse Block or Holder DC Voltage Rating
250VDC
Short Description
Fuse Bases 250V 60A Class R 1-pole Tin-Plate Copper Copper Box
APPROVALS & STANDARDS
All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
Fuse Block or Holder AC Voltage Rating
250VAC
Rated Torque (In.-Lb.)
45 lb-in
Max Fuse Rating
60 A
DC Voltage Rating
250 V DC
Current - Maximum
60 A
AC Voltage Rating
250 V AC
Current - Minimum
31 A

Dimensions

Wire Size
14 to 4 AWG
Length
4-3/4 in
Height
2.12 in
Width
1.46 in
For Fuse Size
3 in L x 13/16 in dia
Mounting Hole Dia.
0.19 in
Overall Height
2.12 in
Wire Size - Minimum
14 AWG
Overall Length
4.75 in
Wire Size - Maximum
4 AWG
Overall Width
1.46 in
Wire Rope Length
4.75 in

Description

Fuse Block, Fits Fuse Type Class R, Fuse UL Class R, 31 to 60 A, Number of Poles 1, 250V AC/DC, For Fuse Size 3 in L x 13/16 in dia, Compatible Fuse Series A2D-R, A2K-R, FLNR, FRN-R, KLNR, KTN-R, KWN-R, LLNRK, LPN-RK, TR-R, Series 2HKRFB, Non-Indicating, Rejection, Fuse Block Design Open, Wire Range 14 to 4 AWG, Mounting Style Bolt-Down, Body Material Glass Filled Polycarbonate, Connector Type Box Lug, Height 2.12 in, Width 1.46 in, Length 4.75 in, Spring Reinforced Clip Yes
