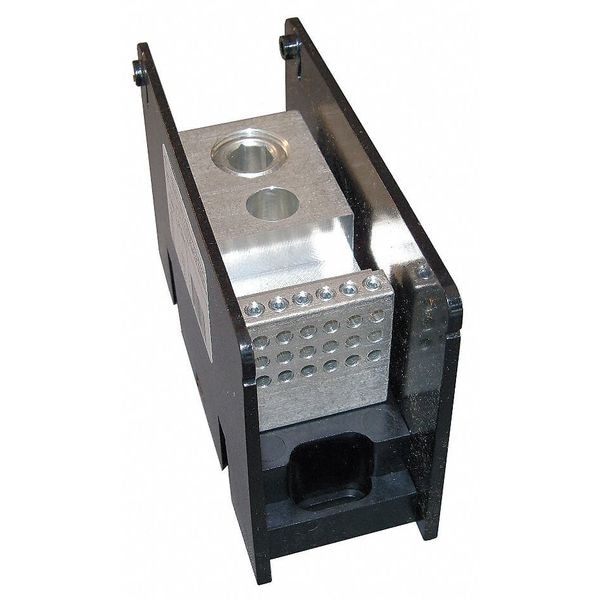

Power Distribution Block, Open, 1 Pole, 380 A Copper, 1,000 V AC/DC, Screw
Mfr # MPDB67491
Zoro # G5386437
product price: $68.87
/eaSold in multiples of 18 for $1,239.66
Key Features
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
380 A
Maximum Current - Aluminum Conductor
380 A
Maximum Voltage
1,000 V AC/DC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MPDB67491
Zoro #
G5386437
UPC #
-
Country of Origin
Mexico
Dimensions
Depth
3.25 in
Length
5.0 in
Width
1.85 in
For Line Aluminum Wire Size - Maximum
500 kcmil
For Load Aluminum Wire Size - Maximum
10 AWG
For Line Copper Wire Size - Minimum
4 AWG
For Line Copper Wire Size - Maximum
500 kcmil
Overall Width
1.85 in
Overall Depth
3.25 in
For Load Aluminum Wire Size - Minimum
14 AWG
For Load Copper Wire Size - Maximum
10 AWG
For Load Copper Wire Size - Minimum
14 AWG
For Line Aluminum Wire Size - Minimum
4 AWG
Overall Length
3.08 in
Hole Diameter (Secondary)
0.14 in
Hole Diameter (Primary)
0.88 in
Product Height
3.25 in
Line Side Stud Size
13/16-16 x 1.06"
Load Side Stud Size
8-32 x 1/4"
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 18, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3.25 in
