  11. Power Distribution Block, Open, 1 Pole, 620 A Copper, 1,000 V AC/DC, Screw

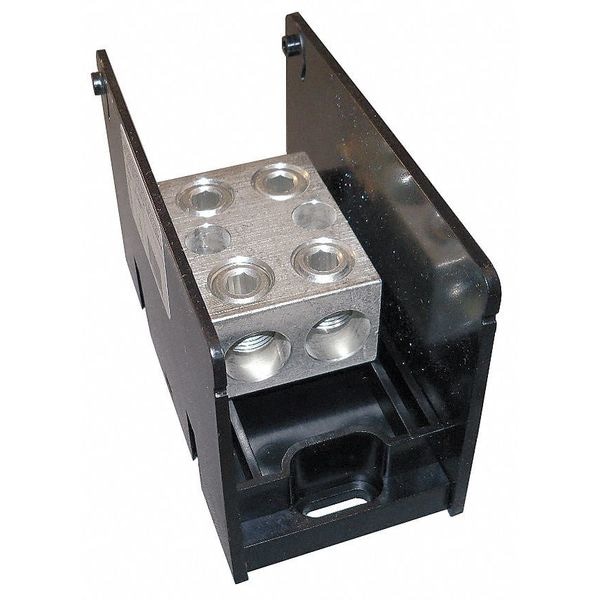

Mersen Power Distribution Block, Open, 1 Pole, 620 A Copper, 1,000 V AC/DC, Screw MPDB69121 - main

Power Distribution Block, Open, 1 Pole, 620 A Copper, 1,000 V AC/DC, Screw

  • Mfr # MPDB69121

  • Zoro # G5364441

product price: $98.19
/ea
Sold in multiples of 18 for $1,767.42
Free Shipping & Returns

Key Features

Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
620 A
Maximum Current - Aluminum Conductor
620 A
Maximum Voltage
1,000 V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MPDB69121
Zoro #
G5364441
UPC #
-
Country of Origin
Mexico

Dimensions

Length
5.7 in
Depth
3.55 in
Width
2.73 in
For Line Copper Wire Size - Maximum
350 kcmil
For Line Aluminum Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Maximum
350 kcmil
For Line Copper Wire Size - Minimum
6 AWG
For Load Aluminum Wire Size - Maximum
350 kcmil
Overall Depth
3.55 in
For Load Aluminum Wire Size - Minimum
6 AWG
Overall Width
2.73 in
For Load Copper Wire Size - Minimum
6 AWG
For Line Aluminum Wire Size - Minimum
6 AWG
Overall Length
5.7 in
Product Height
3.55 in
Hole Diameter (Secondary)
0.75 in
Hole Diameter (Primary)
0.75 in
Load Side Stud Size
11/16-16 x .88"
Line Side Stud Size
11/16-16 x .88"

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
620 A
Maximum Current - Aluminum Conductor
620 A
Maximum Voltage
1,000 V AC/DC
Number of Poles
1
Line Connections/Pole
2
Load Connections/Pole
2
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Glass-Filled Polycarbonate
Maximum Operating Temperature
80 Degrees C
Mounting Type
Screw
Standards
CSA Class 6228-01, RoHS Compliant, UL 1953
Housing Color
Black
UL 94 Flammability Rating
V-0
Number of Circuits
1
Includes
Polycarbonate Safety Covers
Short Circuit Rating (Class G)
60 kA
Number of Openings per Pole (Primary)
2
Number of Openings per Pole (Secondary)
2
Short Circuit Rating (Standalone)
10 kA
Short Circuit Rating (Class CC)
30 kA
Short Circuit Rating (Class RK5)
600 kA
Connector Material
Tin-plated Aluminum
Torque Rating (Primary)
350-#6 275
Torque Rating (Secondary)
350-#6 275
APPLICATIONS
Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
Short Circuit Rating (Class L)
800 kA
Short Circuit Rating (Class RK1)
600 kA
Short Circuit Rating (Class T)
800 kA
Short Circuit Rating (Class J)
600 kA

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 6 AWG, For Load Copper Wire Size - Maximum 350 kcmil, Maximum Current - Copper Conductor 620 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 3.55 in
