  11. Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw

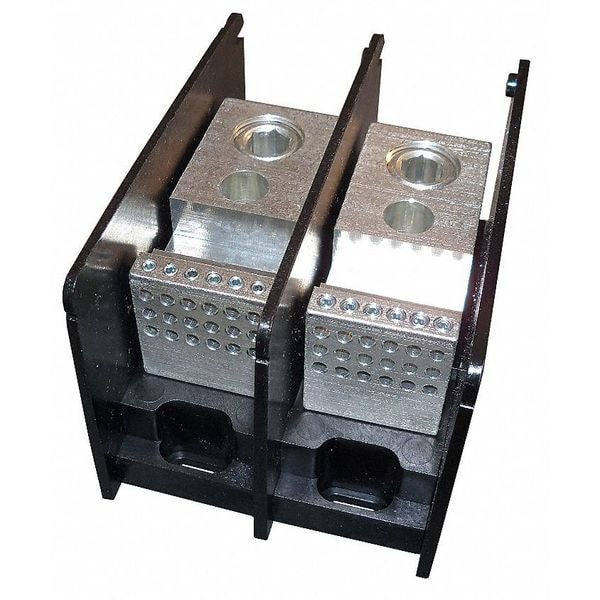

Mersen Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw MPDB67492 - main

Power Distribution Block, Open, 2 Pole, 380 A Copper, 1,000 V AC/DC, Screw

  • Mfr # MPDB67492

  • Zoro # G5386446

product price: $84.82
/ea
Sold in multiples of 9 for $763.38
Free Shipping & Returns

Key Features

Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
380 A
Maximum Current - Aluminum Conductor
380 A
Maximum Voltage
1,000 V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MPDB67492
Zoro #
G5386446
UPC #
-
Country of Origin
Mexico

Dimensions

Width
3.57 in
Length
5.0 in
Depth
3.25 in
For Load Aluminum Wire Size - Maximum
10 AWG
For Line Aluminum Wire Size - Minimum
4 AWG
For Load Copper Wire Size - Minimum
14 AWG
For Line Aluminum Wire Size - Maximum
500 kcmil
For Load Aluminum Wire Size - Minimum
14 AWG
For Load Copper Wire Size - Maximum
10 AWG
Overall Depth
3.25 in
Overall Length
3.08 in
For Line Copper Wire Size - Minimum
4 AWG
Overall Width
3.57 in
For Line Copper Wire Size - Maximum
500 kcmil
Product Height
3.25 in
Hole Diameter (Secondary)
0.14 in
Hole Diameter (Primary)
0.88 in
Line Side Stud Size
13/16-16 x 1.06"
Load Side Stud Size
8-32 x 1/4"

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum
Maximum Current - Copper Conductor
380 A
Maximum Current - Aluminum Conductor
380 A
Maximum Voltage
1,000 V AC/DC
Number of Poles
2
Line Connections/Pole
1
Load Connections/Pole
18
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Glass-Filled Polycarbonate
Maximum Operating Temperature
80 Degrees C
Mounting Type
Screw
Standards
CSA Class 6228-01, RoHS Compliant, UL 1953
Number of Circuits
2
Housing Color
Black
UL 94 Flammability Rating
V-0
Includes
Polycarbonate Safety Covers
Short Circuit Rating (Class RK1)
200 kA
Short Circuit Rating (Standalone)
10 kA
Torque Rating (Secondary)
#10-#14 15
Connector Material
Tin-plated Aluminum
APPLICATIONS
Splicing cables; Splitting primary power into secondary circuits; Fixed junction tap-off points.
Short Circuit Rating (Class CC)
30 kA
Short Circuit Rating (Class J)
400 kA
Short Circuit Rating (Class RK5)
100 kA
Short Circuit Rating (Class L)
400 kA
Number of Openings per Pole (Primary)
1
Torque Rating (Primary)
500-#4 500
Short Circuit Rating (Class T)
400 kA
Short Circuit Rating (Class G)
60 kA
Number of Openings per Pole (Secondary)
18

Description

Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 1, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 18, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 10 AWG, Maximum Current - Copper Conductor 380 A, Maximum Voltage 1,000 V AC/DC, Mounting Type Surface Mount, Number of Poles 2, Overall Depth 3.25 in, Overall Length 3.08 in, Overall Width 3.57 in
