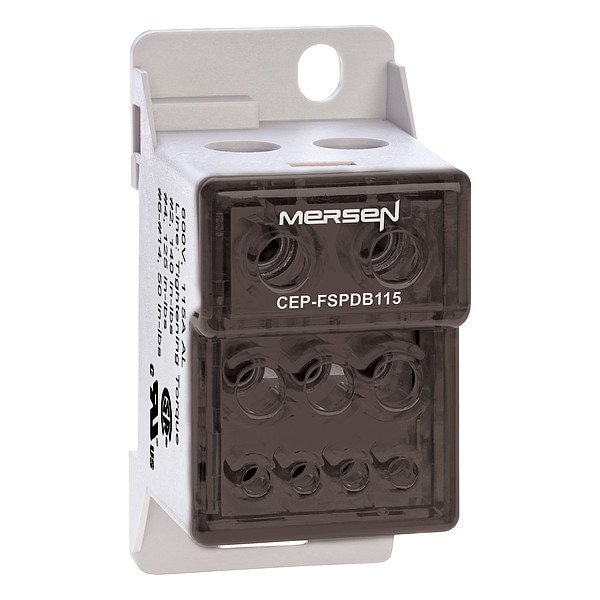

PowerDistributionBlock, 115A, 600V, 1Poles
- Mfr # CEP-FSPDB115
- Zoro # G921827837
product price:Â
$
33.59
/ea
Key Features
Overall Width
33.3 mm
Terminal Material
Aluminum
Power Distribution Block Design
Finger-Safe
Line Connections/Pole
2
Load Connections/Pole
7
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CEP-FSPDB115
- Zoro #
- G921827837
- UPC #
- 0782001499037
- Country of Origin
- Mexico
- Terminal Material
- Aluminum
- Power Distribution Block Design
- Finger-Safe
- Line Connections/Pole
- 2
- Load Connections/Pole
- 7
- Special Features
- Translucent Covers Allow Visual Inspection of Wire Termination Points and Wiring Configurations
- Primary Wire Range
- #2-#14
- Standards
- RoHS, UL 600V
- Item
- Power Distribution Block
- Housing Material
- Glass Filled Polycarbonate
- Line Side Connection Type
- Lug
- UL 94 Flammability Rating
- V-0
- Number of Poles
- 1
- Secondary Wire Range
- #8-#16 + #4-#15
- For Conductor Material
- Aluminum
- Maximum Current - Aluminum Conductor
- 90 A
- Load Side Connection Type
- Lug
- Maximum Current - Copper Conductor
- 115 A
- Maximum Voltage
- 600 V
Dimensions
- Overall Width
- 33.3 mm
- For Load Copper Wire Size - Maximum
- 16 AWG
- For Line Aluminum Wire Size - Minimum
- 2 AWG
- For Line Copper Wire Size - Maximum
- 2 AWG
- Wire Rope Length
- 68.8 mm
- Overall Depth
- 45.5 mm
- For Line Copper Wire Size - Minimum
- 14 AWG
- Overall Length
- 68.8 mm
- Length
- 68.8 mm
Description
Power Distribution Block, For Conductor Material Aluminum, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2 AWG, Load Connections/Pole 7, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 16 AWG, Maximum Current - Copper Conductor 115 A, Maximum Voltage 600 V, Mounting Type DIN-Rail, Surface, Number of Poles 1
