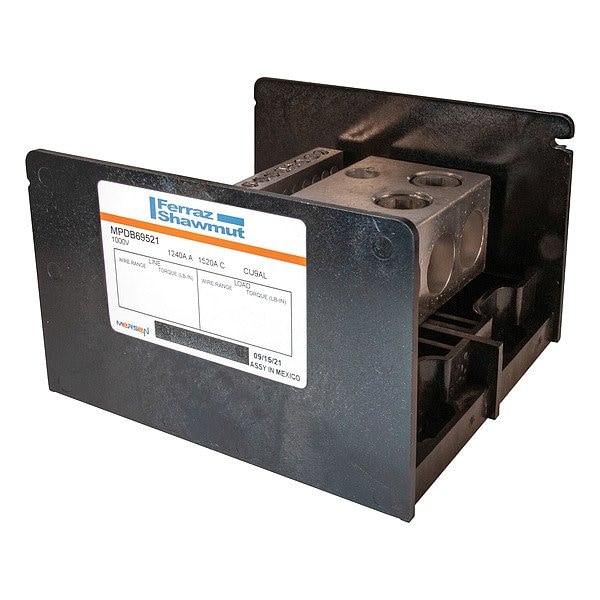

PowerDistributionBlock, 1520A, 1000V, 1Pole
Mfr # MPDB69521
Zoro # G923720686
product price:Â
$
312.99
/ea
Free Shipping & Returns
Key Features
For Line Copper Wire Size - Maximum
500 kcmil
Line Side Connection Type
Lug
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Maximum Voltage
1,000 V
Maximum Current - Aluminum Conductor
1,240 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MPDB69521
- Zoro #
- G923720686
- UPC #
- 0782001458744
- Country of Origin
- Mexico
- Line Side Connection Type
- Lug
- Special Features
- Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
- Maximum Voltage
- 1,000 V
- Maximum Current - Aluminum Conductor
- 1,240 A
- Secondary Wire Range
- #6-#14, 2/0-#14
- Terminal Material
- Aluminum
- Primary Wire Range
- 500-#4
- Standards
- CSA, RoHS, UL, UL 1953
- UL 94 Flammability Rating
- V-0
- Item
- Power Distribution Block
- Housing Material
- Glass Filled Polycarbonate
- For Conductor Material
- Aluminum, Copper
- Power Distribution Block Design
- Open
- Line Connections/Pole
- 2
- Maximum Current - Copper Conductor
- 1,520 A
- Number of Poles
- 1
- Load Connections/Pole
- 4
- Load Side Connection Type
- Lug
Description
Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 4 AWG, For Line Copper Wire Size - Maximum 500 kcmil, Load Connections/Pole 4, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 1,520 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1
