Shop MERSEN

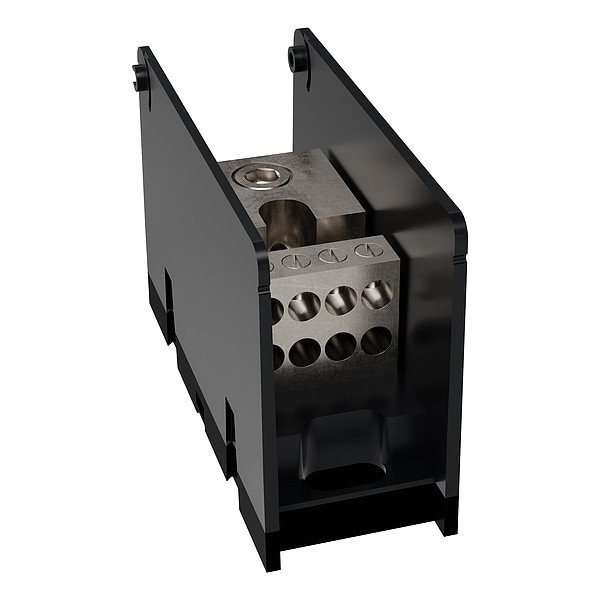

PowerDistributionBlock, 310A, 1000V, 1Poles

  • Mfr # MPDB67631

  • Zoro # G423720674

product price:  $72.65
/ea

Key Features

For Line Aluminum Wire Size - Minimum
350 kcmil
Maximum Voltage
1,000 V
Number of Poles
1
Standards
CSA, RoHS, UL, UL 1953
Housing Material
Glass Filled Polycarbonate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MPDB67631
Zoro #
G423720674
UPC #
0782001452780
Country of Origin
Mexico

Dimensions

For Line Aluminum Wire Size - Minimum
350 kcmil
For Load Copper Wire Size - Minimum
14 AWG
Overall Width
47 mm
For Line Copper Wire Size - Maximum
350 kcmil
For Load Copper Wire Size - Maximum
2 AWG
Overall Depth
82.6 mm
For Line Copper Wire Size - Minimum
6 AWG
Overall Length
78.2 mm
Wire Rope Length
78.2 mm

Details

Maximum Voltage
1,000 V
Number of Poles
1
Standards
CSA, RoHS, UL, UL 1953
Housing Material
Glass Filled Polycarbonate
Secondary Wire Range
#2-#14
Load Side Connection Type
Lug
UL 94 Flammability Rating
V-0
For Conductor Material
Aluminum, Copper
Maximum Current - Aluminum Conductor
250 A
Power Distribution Block Design
Open
Load Connections/Pole
8
Terminal Material
Aluminum
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Line Side Connection Type
Lug
Maximum Current - Copper Conductor
310 A
Item
Power Distribution Block
Line Connections/Pole
1
Primary Wire Range
350-#6

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 6 AWG, For Line Copper Wire Size - Maximum 350 kcmil, Load Connections/Pole 8, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 2 AWG, Maximum Current - Copper Conductor 310 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 82.6 mm
