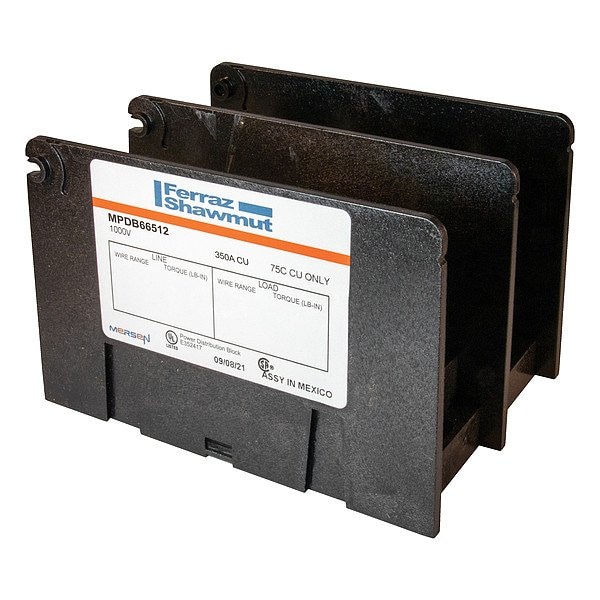

PowerDistributionBlock, 350A, 1000V, 2Poles
Mfr # MPDB66512
Zoro # G223720690
product price:Â $186.99
/ea
Free Shipping & Returns
Key Features
Housing Material
Glass Filled Polycarbonate
Secondary Wire Range
#2-#14
Load Connections/Pole
6
Primary Wire Range
2/0-#14
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
MPDB66512
Zoro #
G223720690
UPC #
0782001456818
Country of Origin
Mexico
Dimensions
For Line Copper Wire Size - Maximum
2/0 AWG
Overall Width
90.7 mm
Overall Length
78.2 mm
Overall Depth
82.6 mm
For Load Copper Wire Size - Maximum
14 AWG
For Line Copper Wire Size - Minimum
14 AWG
Details
Housing Material
Glass Filled Polycarbonate
Secondary Wire Range
#2-#14
Load Connections/Pole
6
Primary Wire Range
2/0-#14
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
UL 94 Flammability Rating
V-0
Line Connections/Pole
2
Item
Power Distribution Block
Standards
CSA, National Electrical Code, UL, UL 1953, UL508A
Terminal Material
Copper
Line Side Connection Type
Lug
Load Side Connection Type
Lug
For Conductor Material
Copper
Power Distribution Block Design
Open
Maximum Voltage
1,000 V
Number of Poles
2
Maximum Current - Copper Conductor
350 A
Description
Power Distribution Block, For Conductor Material Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 6, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum Not Applicable, For Load Copper Wire Size - Maximum 14 AWG, Maximum Current - Copper Conductor 350 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 2, Overall Depth 82.6 mm
