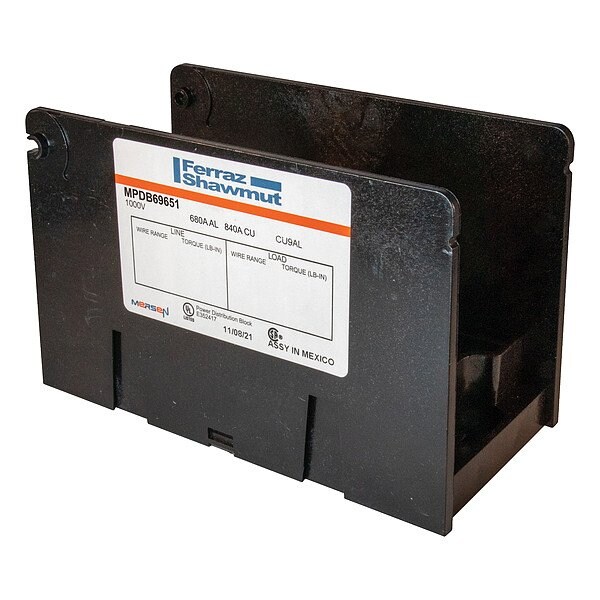

PowerDistributionBlock, 840A, 1000V, 1Poles

  • Mfr # MPDB69651

  • Zoro # G223720676

product price:  $145.99
/ea
Free Shipping & Returns

Key Features

For Line Aluminum Wire Size - Minimum
600 kcmil
Maximum Voltage
1,000 V
UL 94 Flammability Rating
V-0
Standards
CSA, RoHS, UL, UL 1953
For Line Copper Wire Size - Minimum
2 AWG
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
MPDB69651
Zoro #
G223720676
UPC #
0782001453077
Country of Origin
Mexico

Dimensions

For Line Aluminum Wire Size - Minimum
600 kcmil
For Line Copper Wire Size - Minimum
2 AWG
Overall Length
144.8 mm
Overall Width
69.3 mm
For Line Copper Wire Size - Maximum
600 kcmil
For Load Aluminum Wire Size - Minimum
600 kcmil
For Load Copper Wire Size - Maximum
600 kcmil
For Load Copper Wire Size - Minimum
2 AWG
Overall Depth
90.2 mm

Details

Maximum Voltage
1,000 V
UL 94 Flammability Rating
V-0
Standards
CSA, RoHS, UL, UL 1953
Primary Wire Range
600-#2
Line Connections/Pole
2
Power Distribution Block Design
Open
Item
Power Distribution Block
Secondary Wire Range
600-#2
Terminal Material
Aluminum
Maximum Current - Copper Conductor
840 A
Line Side Connection Type
Lug
Housing Material
Glass Filled Polycarbonate
Load Side Connection Type
Lug
Load Connections/Pole
2
Number of Poles
1
Maximum Current - Aluminum Conductor
680 A
Special Features
Mersen Power Distribution Blocks Provide a Safe and Easy Method of Splicing Cables, Splitting Primary Power into Secondary Circuits and Fulfilling Requirements for Fixed Junction Tap-Off Points
For Conductor Material
Aluminum, Copper

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 2, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 2 AWG, For Line Copper Wire Size - Maximum 600 kcmil, Load Connections/Pole 2, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 2 AWG, For Load Copper Wire Size - Maximum 600 kcmil, Maximum Current - Copper Conductor 840 A, Maximum Voltage 1,000 V, Mounting Type Surface, Number of Poles 1, Overall Depth 90.2 mm
