  11. Surge Protection Device, 1 Phase, 240V AC, 1 Poles, 2 Wires, 75 kA

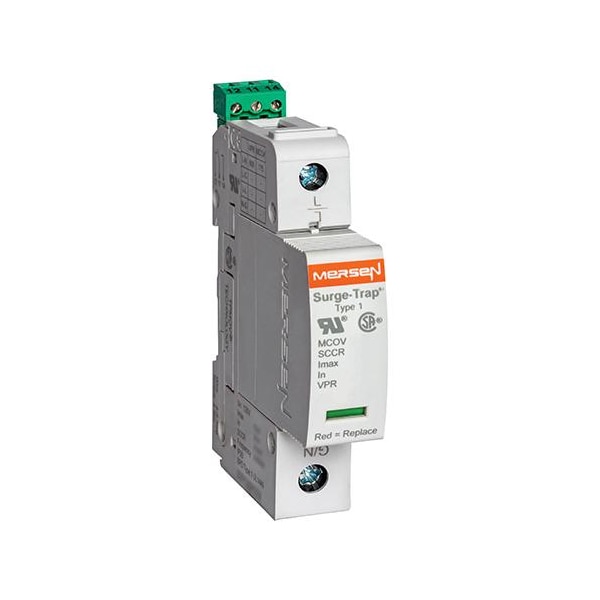

Mersen Surge Protection Device, 1 Phase, 240V AC, 1 Poles, 2 Wires, 75 kA STP230P07M - main

Surge Protection Device, 1 Phase, 240V AC, 1 Poles, 2 Wires, 75 kA

  • Mfr # STP230P07M

  • Zoro # G9036927

product price: $182.88
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
1
Voltage
240V AC
Number of Poles
1
Number of Wires
2 Wires
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STP230P07M
Zoro #
G9036927
UPC #
-
Country of Origin
Mexico

Dimensions

Length
4.19 in
Depth
2.81 in
Width
0.69 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
1
Voltage
240V AC
Number of Poles
1
Voltage Protection Rating
900V (L-N)
Number of Wires
2 Wires
Modes of Protection
L-N
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
275V AC
Enclosure NEMA Rating
NEMA 1
IP Rating
IP20
Enclosure Material
Thermoplastic
Wire Gauge
14 to 4 AWG
Includes
Microswitch
Standards
RoHS Compliant
Installation Mounting
DIN Rail
Connection Terminal Type
Box
Response Time
<25 ns
Flammability Rating
UL94 V0
Wire Connections
Box
Max Storage Temp
85 °C
Mcov L-N
275 V
Max Operating Temp
85 °C
System Configuration
Single Phase
Ul Spd Type
Type 1 Component Assembly
Min Storage Temp
-40 °C
Wire Type
Solid / Stranded CU
Torque Rating
35.4 lb-in
Replacement Plug L1
SP07U275
Min Operating Temp
-40 °C
Wiring Range
#4 to #14 AWG
Ac Or Dc
AC
Max Discharge Current Imax 8 20
75kA
Connection/Terminal Type
Box
Short Description
SPD - Plugable STP 75 Series 240V L-N VPR 600V L-N MCOV 275V 75 kA 1-pole MICRO
Max Discharge Current : Imax (8/20)
75kA
Frequency
50/60 Hz
Indication System
Yes
Item Description (ERP)
STP T1 75kA 230V 1P ALM
MOV Response Time
<25 ns
Indication System Type
Microswitch
APPROVALS & STANDARDS
ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2,
Amps
75 kA
Max. Operating Temp.
185 Degrees F
Min. Operating Temp.
-40 Degrees F
UL SPD Type
Type 1

Description

Surge Protection Device, Amps 75 kA, Depth 71.4 mm
