  11. Surge Protection Device, 1000V DC, 3 Poles

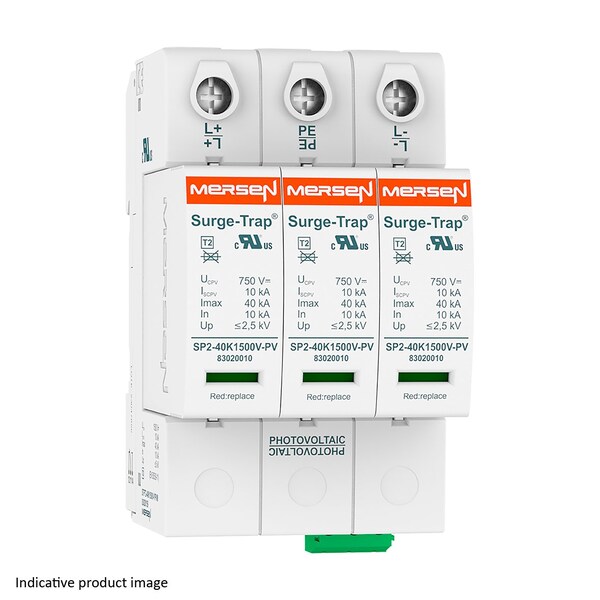

Mersen Surge Protection Device, 1000V DC, 3 Poles 83020140 - main

Surge Protection Device, 1000V DC, 3 Poles

  • Mfr # 83020140

  • Zoro # G9036960

product price: $328.61
/ea
Free Shipping & Returns

Key Features

Voltage
1000V DC
Number of Poles
3
Modes of Protection
PV
Max. Surge Current per Mode
40kA
Short Circuit Current Rating
50kA, 65kA, 100kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
83020140
Zoro #
G9036960
UPC #
8435297850878
Country of Origin
Spain

Dimensions

Width
2.13 in
Length
2.76 in

Details

Item
Surge Protection Device
Voltage
1000V DC
Number of Poles
3
Modes of Protection
PV
Max. Surge Current per Mode
40kA
Short Circuit Current Rating
50kA, 65kA, 100kA
Enclosure Material
Polyamide
Max Discharge Current Imax 8 20
40kA
Iec Spd Type
Type 2 IEC 61643-31; Type 2 EN 50539-11; Type 2 UL 1449
Vpr Dc- G
3000 V
Up At In L-L
‰¤4.0 kV
Wire Type
Rigid: 6€¦35mm²
Nominal discharge current (8/20μs)
10 kA, 20 kA
Ac Or Dc
DC
Up At In L-Pe
‰¤4.0 kV
Min Operating Temp
-40 °C
SCCR
50 kA, 65 kA, 100 kA (UL 1449 4th Ed.)
System Configuration
PV
Torque Rating
35.4 lb-in
Max Operating Temp
85 °C
Vpr Dc Dc-
3000 V
Response Time
25 ns
Replacement Plug L-N
SP2-40K1000V-PV
Ul Spd Type
Type 2
Vpr Dc G
3000 V
Voltage Protection Rating
3000 V
Max. Surge Current per Phase
40 kA
Nominal Discharge Current
20 kA

Description

Surge-Trap SPD T2,40kA,Ucpv 1060V,YPV
