  11. Surge Protection Device, 3 Phase, 120/208V AC, 4 Poles, 5 Wires

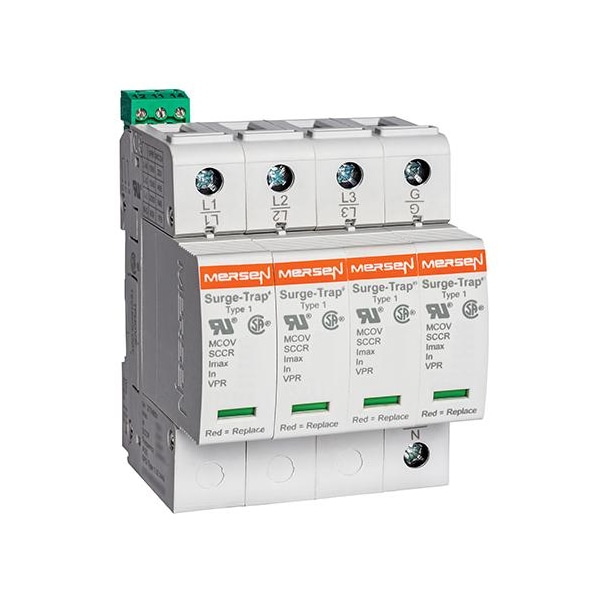

Mersen Surge Protection Device, 3 Phase, 120/208V AC, 4 Poles, 5 Wires STP208YN07M - main

Surge Protection Device, 3 Phase, 120/208V AC, 4 Poles, 5 Wires

  • Mfr # STP208YN07M

  • Zoro # G9037021

product price: $501.67
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Phase
3
Voltage
120/208V AC
Number of Poles
4
Voltage Protection Rating
1200V (L-G), 1200V (L-L), 600V (L-N), 600V (N-G)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
STP208YN07M
Zoro #
G9037021
UPC #
782001477707
Country of Origin
Mexico

Dimensions

Length
4.19 in
Depth
2.81 in
Width
2.76 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Phase
3
Voltage
120/208V AC
Number of Poles
4
Voltage Protection Rating
1200V (L-G), 1200V (L-L), 600V (L-N), 600V (N-G)
Number of Wires
5 Wires
Modes of Protection
L-N
Max. Surge Current per Mode
75 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
175/350V AC
Enclosure NEMA Rating
NEMA 1
IP Rating
IP20
Enclosure Material
Thermoplastic
Replacement Plug N-G
SP07U175
Min Operating Temp
-40 °C
Mcov L-N
175 V
Replacement Plug L2
SP07U175
Wire Type
Solid / Stranded CU
Max Operating Temp
85 °C
Torque Rating
35.4 lb-in
Response Time
<25 ns
Wire Connections
Box
Mcov N-G
175 V
Replacement Plug L3
SP07U175
Connection Terminal Type
Box
System Configuration
Three Phase Wye
Mcov L-L
350 V
Installation Mounting
DIN Rail
Max Discharge Current Imax 8 20
75kA
Mcov L-G
175 V
Replacement Plug L1
SP07U175
Max Storage Temp
85 °C
Flammability Rating
UL94 V0
Min Storage Temp
-40 °C
Ul Spd Type
Type 1 Component Assembly
Ac Or Dc
AC
Wiring Range
#4 to #14 AWG
Indication System Type
Microswitch
Short Description
SPD - Plugable STP 75 Series N-G 208V L-N VPR 600V L-N MCOV 175V 75 kA 4-pole MI
APPROVALS & STANDARDS
ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2,
Frequency
50/60 Hz
Item Description (ERP)
STP T1 75kA 208Y/120V ALM N-G
MOV Response Time
<25 ns
Indication System
Yes
Max Discharge Current : Imax (8/20)
75kA
Connection/Terminal Type
Box
Max. Surge Current per Phase
75kA

Description

Surge-Trap STP T1 75kA 208Y/120V ALM NG
