  11. Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires
This item is Discontinued.

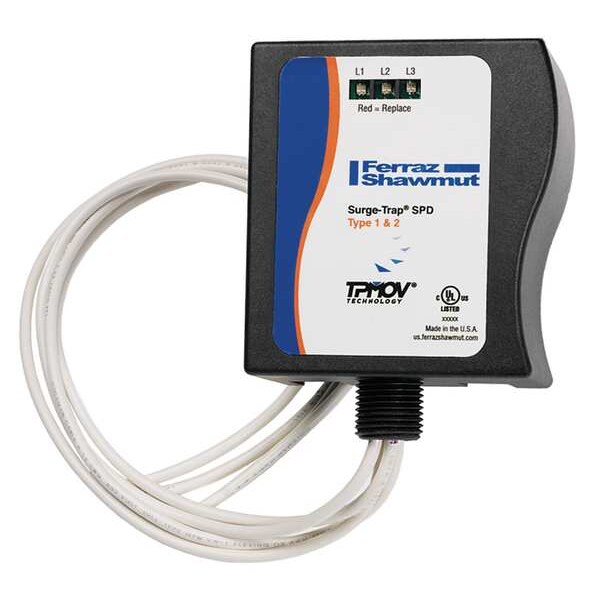

Mersen Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires STT22083PYG

Surge Protection Device, Three Phase, 120/208V AC Wye, 3 Poles, 4 Wires (Discontinued)

  • Mfr # STT22083PYG
  • Zoro # G2906014
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STT22083PYG
Zoro #
G2906014
UPC #
-
Country of Origin
Mexico

Dimensions

Length
5.4 in
Depth
2.37 in
Width
3.3 in
Length (Straight Wireway)
5.4 in

Details

Item
Surge Protection Device
Mounting Style
Chase Nipple
Phase
Three
Voltage
120/208V AC Wye
Number of Poles
3
Voltage Protection Rating
1200V (L-L), 700V (L-N)
Number of Wires
4 Wires
Modes of Protection
L-L, L-N
Max. Surge Current per Mode
50kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
No
Filtering
No
Max. Continuing Operating Voltage
180/360V AC
Enclosure NEMA Rating
2
Enclosure Material
Polycarbonate
Wire Gauge
12 AWG
Includes
2 ft Leads
Standards
UL 1449 3rd Edition
Filtering / Nonfiltering
Nonfiltering
Modular / Nonmodular
Nonmodular
System Connection
Parallel

Description

Surge Protection Device, Depth 2.37 in, Enclosure Material Polycarbonate, Enclosure NEMA Rating 2
