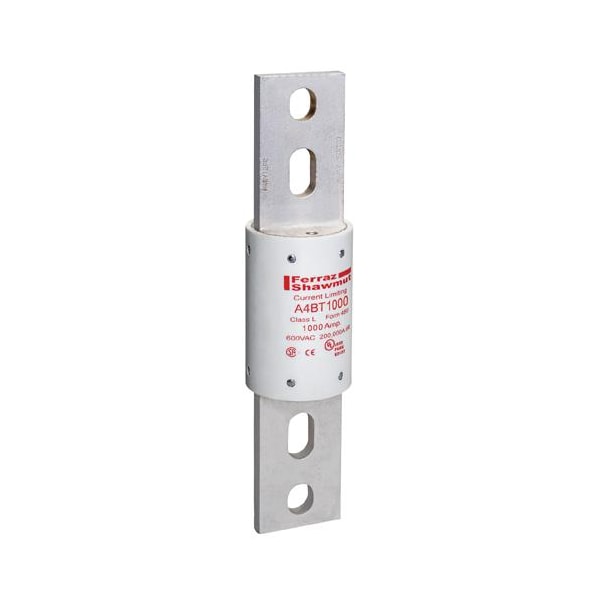

UL Class Fuse, L Class, A4BT Series, Time-Delay, 1000A, 600V AC
Mfr # A4BT1000
Zoro # G9037773
product price:Â
$
733.99
/ea
Free Shipping & Returns
Key Features
Class
L
Speed
Time-Delay
AC Voltage Rating
600V AC
DC Voltage Rating
500V DC
Interrupt Rating
200kA at 600V AC, 100kA at 500V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- A4BT1000
- Zoro #
- G9037773
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length
- 10-3/4 in
- Diameter
- 2-1/2 in
Details
- Class
- L
- Series
- A4BT
- Speed
- Time-Delay
- Amps
- 1000A
- AC Voltage Rating
- 600V AC
- DC Voltage Rating
- 500V DC
- Interrupt Rating
- 200kA at 600V AC, 100kA at 500V DC
- Body Style
- Bolt-On
- Body Material
- GMG
- Item
- UL Class Fuse
- Weight
- 4.5 lb
- Mounting
- Bolted
- Connection Type
- Blade
- Frequency
- 50/60 Hz
- APPROVALS & STANDARDS
- UL Listed to Standard 248-10, File E2137; CSA Certified to Standard C22.2, No. 248.68; Self-certified for DC per UL248 (601-2000)
- Connection/Terminal Type
- Blade
- Body/Insulating Material
- GMG
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Rated voltage DC UL
- 500 V
- Connection/Terminal Material
- Silver-Plated Copper
- Short Description
- Fuse Amp-Trap® 600V 1000A Time-Delay Class L A4BT Series
Description
L TD FUSE 600V 1000A A4BT
