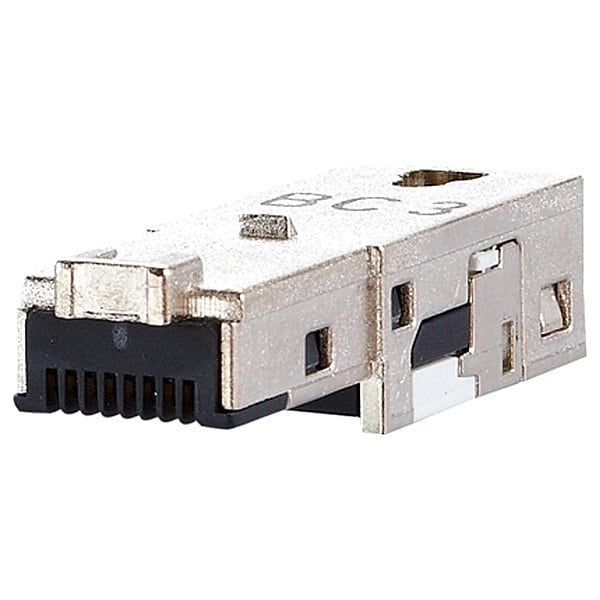

Field Plug Insert, Metallike, Poles 8
Mfr # 1401400810-I
Zoro # G308655848
product price:Â $28.45
/eaKey Features
Wire Size
22 AWG, 26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Standards
DIN EN 50173-1, ISO/IEC 11801
Connector Orientation
Straight
Maximum Operating Temperature
158 Degrees F
Shielded
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1401400810-I
- Zoro #
- G308655848
- UPC #
- 4250184114116
- Country of Origin
- Germany
Dimensions
- Wire Size
- 22 AWG, 26/1 to 22/1 AWG, 26/7 to 22/7 AWG
- Cable Diameter
- 5.5 to 8.5 mm
Details
- Item
- Field Plug Insert
- Standards
- DIN EN 50173-1, ISO/IEC 11801
- Connector Orientation
- Straight
- Maximum Operating Temperature
- 158 Degrees F
- Shielded
- Yes
- Data Rate
- 10 Gbits
- Number of Poles
- 8
- Application
- Data, HDBaseT, Power
- Minimum Operating Temperature
- -40 Degrees F
- Minimum Mating Cycles
- 750
- Housing Material
- Zinc Die-Cast
- Connector Gender
- Male
- Current Rating
- 1 A
- Performance Category
- Cat6
- Connection Type
- Insulation Displacement
- Connector Color
- Metallike
- IP Rating
- IP67
Description
Field Plug Insert, Application Data, HDBaseT, Power, Cable Diameter 5.5 to 8.5 mm, Connection Type Insulation Displacement, Connector Color Metallike, Connector Gender Male, Connector Orientation Straight, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, IP Rating IP67, Maximum Operating Temperature 158 Degrees F, Minimum Mating Cycles 750, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded Yes
