Shop METZ CONNECT
See all product information
Create Account

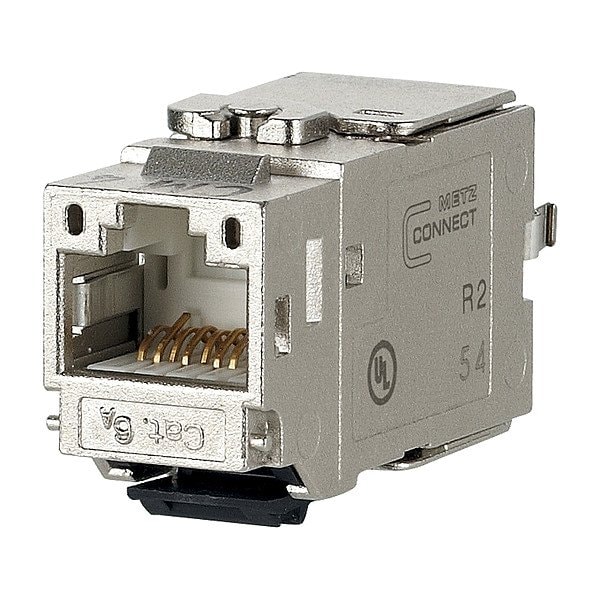

Keystone Module, Metallike, Poles 8
Mfr # 130B21-E
Zoro # G708655820
product price:Â
$
16.95
/ea
Key Features
Wire Size
26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Number of Poles
8
Connector Orientation
Straight
Housing Material
Zinc Die-Cast
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 130B21-E
- Zoro #
- G708655820
- UPC #
- 4250184133483
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
- Cable Diameter
- 0.217 in to 0.394 in
Details
- Item
- Keystone Module
- Standards
- ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
- Number of Poles
- 8
- Connector Orientation
- Straight
- Housing Material
- Zinc Die-Cast
- Connector Color
- Metallike
- Application
- Data, HDBaseT, Power
- Shielded
- Yes
- Current Rating
- 1 A
- Data Rate
- 10 Gbits
- Voltage Rating
- 50V
- Connector Gender
- Female
- Connection Type
- Insulation Displacement
- Performance Category
- Cat6A
Description
Keystone Module, Application Data, HDBaseT, Power, Cable Diameter 0.217 in to 0.394 in, Connection Type Insulation Displacement, Connector Color Metallike, Connector Gender Female, Connector Orientation Straight, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes, Standards ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801, Voltage Rating 50V
