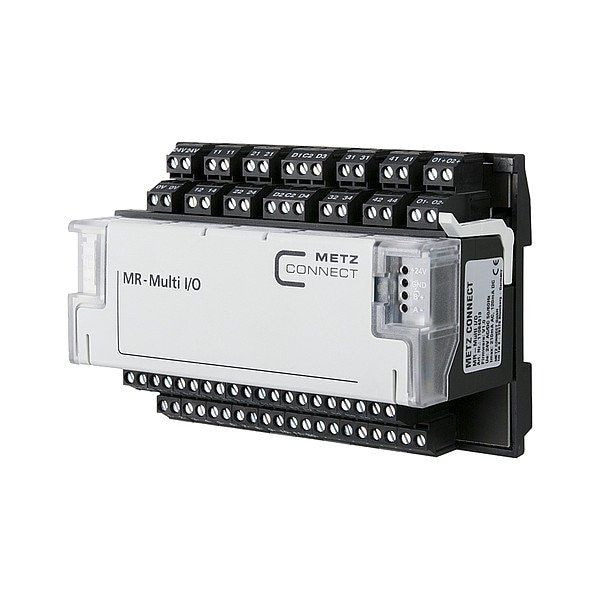

Metz Connect Modbus Module, 12 Inputs, 10 Outputs 11084313 - main

Modbus Module, 12 Inputs, 10 Outputs

  • Mfr # 11084313

  • Zoro # G612007326

product price: $722.99
/ea
Free Shipping & Returns

Key Features

Output Type
(2) Analog, (4) Digital, (4) Relay
Number of Outputs
10
Number of Inputs
12
Features
Module is Address with Adjustable Bit Rate, Inputs and Outputs can be Switched and Scanned
Input Circuit Voltage - Maximum
10 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11084313
Zoro #
G612007326
UPC #
4251122198786
Country of Origin
Germany

Dimensions

Overall Width
125 mm
Overall Height
93 mm
Overall Depth
60.8 mm

Details

Item
Modbus Module
Output Type
(2) Analog, (4) Digital, (4) Relay
Number of Outputs
10
Number of Inputs
12
Features
Module is Address with Adjustable Bit Rate, Inputs and Outputs can be Switched and Scanned
Input Circuit Voltage - Maximum
10 V DC
Input Circuit Current - Maximum
20 mA
Connector Type
Terminal Block
Output Circuit Voltage - Minimum
0 V DC
Compatible with Manufacturer Model Number
MR-F-GW, MR-GW
Input Circuit Voltage - Minimum
0 V DC
Input Circuit Current - Minimum
0 mA
Output Circuit Current - Maximum
6 A
Mounting Style
DIN Rail
Communication Protocol
Modbus RTU
Connector Gender
Female
Product Type
Modbus Module
Current Rating
20 mA
Output Circuit Voltage - Maximum
10 V DC
Input Type
(11) Digital, Analog
Compatible with Series
C-Logline
Power Required
24V AC/DC
Compatible Product Type
BAS Controller, Programmable Logic Controllers, TCP Gateways
Compatible with Brand
METZ Connect
Wire Connection Type
Screw Clamp
Compatible with Mfr. Model No.
MR-F-GW, MR-GW
For Use with Mfr Model Number
MR-F-GW, MR-GW
Compatible Manufacturer Part Number
MR-F-GW, MR-GW
Compatible Manufacturer Model Number
MR-F-GW, MR-GW
For Use With Mfr. Model Number
MR-F-GW, MR-GW
Compatible with Manufacturer Model No.
MR-F-GW, MR-GW
Compatible Pump Manufacturer Part Number
MR-F-GW, MR-GW
Compatible Mfr. Model Number
MR-F-GW, MR-GW

Description

Modbus Module, Number of Inputs 12, Number of Outputs 10, Power Required 24V AC/DC, Features Module is Address with Adjustable Bit Rate, Inputs and Outputs can be Switched and Scanned, Connector Gender Female, Current Rating 20 mA, Mounting Style DIN Rail, Connector Type Terminal Block, Wire Connection Type Screw Clamp
