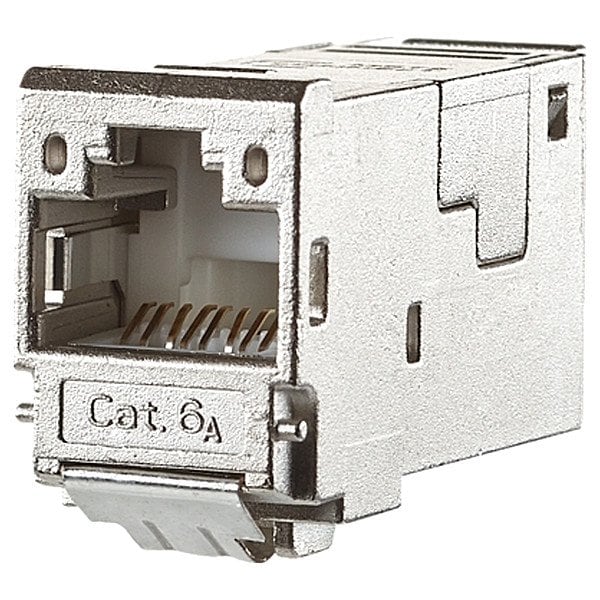

Module Jack, Metallike, Poles 8
- Mfr # 130910-I
- Zoro # G208655832
product price:Â
$
16.25
/ea
Key Features
Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Current Rating
1 A
Shielded
Yes
Cable Diameter
0.197 in to 0.394 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 130910-I
- Zoro #
- G208655832
- UPC #
- 4250184105473
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 22/1 AWG, 26/7 to 22/7 AWG
- Cable Diameter
- 0.197 in to 0.394 in
Details
- Item
- Module Jack
- Standards
- ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
- Current Rating
- 1 A
- Shielded
- Yes
- Number of Poles
- 8
- Performance Category
- Cat6A
- Connection Type
- Insulation Displacement
- Maximum Operating Temperature
- 158 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Connector Color
- Metallike
- Connector Orientation
- Straight
- Connector Gender
- Female
- Data Rate
- 10 Gbits
- Voltage Rating
- 50V
- Housing Material
- Zinc Die-Cast
- Application
- Data, HDBaseT, Power
Description
Module Jack, Application Data, HDBaseT, Power, Cable Diameter 0.197 in to 0.394 in, Connection Type Insulation Displacement, Connector Color Metallike, Connector Gender Female, Connector Orientation Straight, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes
