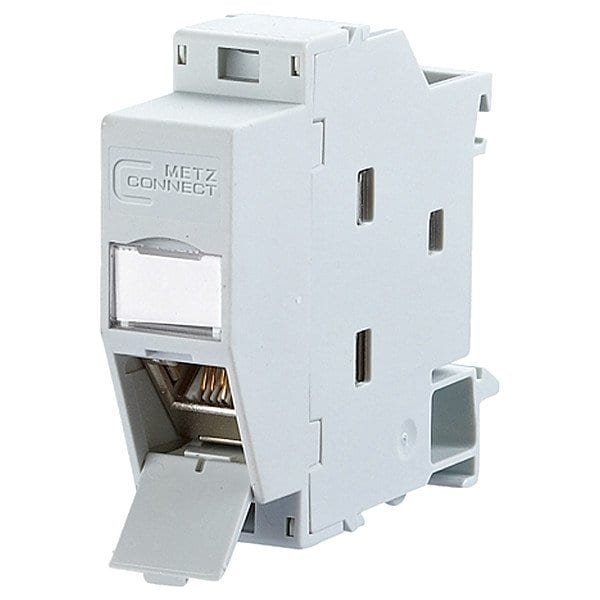

Rail-Mount Module, Light Gray, Poles 8
Mfr # 1309107003-E
Zoro # G208655856
product price: $34.19
/eaKey Features
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Connection Type
Insulation Displacement
Shielded
Yes
Current Rating
1 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1309107003-E
Zoro #
G208655856
UPC #
4250184136569
Country of Origin
Germany
Dimensions
Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Cable Diameter
0.197 in to 0.394 in
Details
Item
Rail-Mount Module
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Connection Type
Insulation Displacement
Shielded
Yes
Current Rating
1 A
Performance Category
Cat6A
Maximum Operating Temperature
158 Degrees F
Application
Data, HDBaseT, Power
Housing Material
Zinc Die-Cast
Minimum Operating Temperature
-40 Degrees F
Data Rate
10 Gbits
Connector Gender
Female
Number of Poles
8
Connector Color
Light Gray
Connector Orientation
45 Degrees Angled
IP Rating
IP20
Description
Rail-Mount Module, Application Data, HDBaseT, Power, Cable Diameter 0.197 in to 0.394 in, Connection Type Insulation Displacement, Connector Color Light Gray, Connector Gender Female, Connector Orientation 45 Degrees Angled, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, IP Rating IP20, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes
