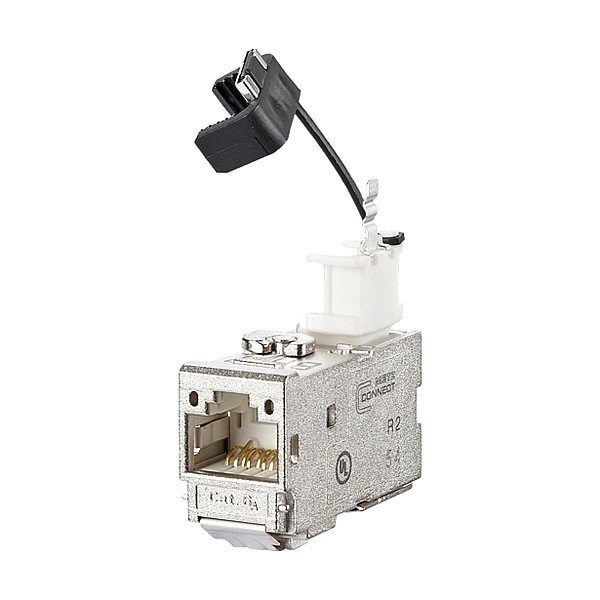

Wall Outlet, Metallike, Poles 8
Mfr # 130B13-E
Zoro # G408655823
product price:Â $17.55
/eaKey Features
Wire Size
26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
Standards
ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
Connector Orientation
90 Degrees Angled
Performance Category
Cat6A
Connector Color
Metallike
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 130B13-E
- Zoro #
- G408655823
- UPC #
- 4250184133445
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 22/1 AWG (Solid), 26/7 to 22/7 AWG (Stranded)
- Cable Diameter
- 0.217 in to 0.394 in
Details
- Item
- Wall Outlet
- Standards
- ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801
- Connector Orientation
- 90 Degrees Angled
- Performance Category
- Cat6A
- Connector Color
- Metallike
- Current Rating
- 1 A
- Data Rate
- 10 Gbits
- Number of Poles
- 8
- Connection Type
- Insulation Displacement
- Shielded
- Yes
- Connector Gender
- Female
- Application
- Data, HDBaseT, Power
- Housing Material
- Zinc Die-Cast
- Voltage Rating
- 50V
Description
Wall Outlet, Application Data, HDBaseT, Power, Cable Diameter 0.217 in to 0.394 in, Connection Type Insulation Displacement, Connector Color Metallike, Connector Gender Female, Connector Orientation 90 Degrees Angled, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes, Standards ANSI/TIA-568.2-D, DIN EN 50173-1, GHMT Certified, IEC 60603-7-51, ISO/IEC 11801, Voltage Rating 50V
