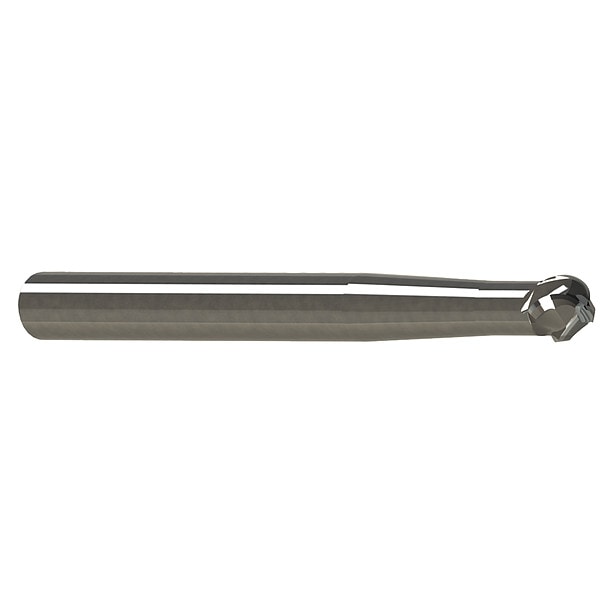

Micro 100 Carbide End Mill, 8 mm, Cut 5.4 mm, 4 FLT SBMM-080-424 - main

Carbide End Mill, 8 mm, Cut 5.4 mm, 4 FLT

  • Mfr # SBMM-080-424

  • Zoro # G8098063

product price: $110.99
/ea
Free Shipping & Returns

Key Features

Dimension Type
Metric
Milling Diameter
8.00mm
End Mill Material
Carbide
Number of Flutes
4
Length of Cut
5.4 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SBMM-080-424
Zoro #
G8098063
UPC #
728709177129
Country of Origin
United States

Dimensions

Dimension Type
Metric
Milling Diameter
8.00mm
Length of Cut
5.4 mm
Shank Dia.
8 mm
Corner Radius
4.000mm
Neck Dia.
5.4 mm
Overall Length
100 mm
Neck Length
24 mm
Milling Dia.
8 mm
Radius
4.000 mm

Details

End Mill Material
Carbide
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
C2 Micro Grain
Helix Angle
30 Degrees
Cutting Direction
Right Hand
Item
Ball End Mill
Shank Type
Straight
End Mill Style
Ball Nose
End Mill Application
Finishing
List Number
SBMM
Finish
Bright (Uncoated)
Finish - Machining
Uncoated
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
K, M, N, O, P, S
Material Grade - Machining
Micrograin
Chip-Breaker
Chip-Breaker Not Included
Shank Type - Machining
Straight
Primary Material Application
All Materials
Measurement System
Metric
Material - Machining
Carbide
Coolant Fed
Non-Coolant Through
Offset
4.24 mm

Description

Ball End Mill, 8 mm Milling Dia., Carbide, Uncoated, Non-Coolant Through
