  11. Threading Tool Set, Internal, 6 Pc

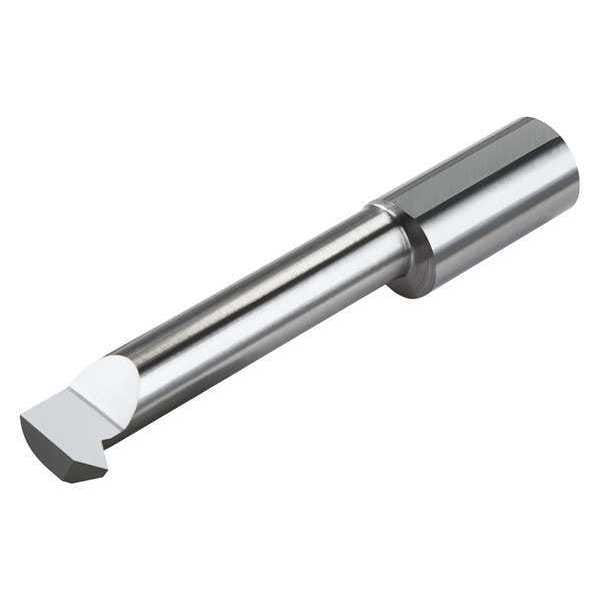

Micro 100 Threading Tool Set, Internal, 6 Pc IT-1 - main

Threading Tool Set, Internal, 6 Pc

  • Mfr # IT-1

  • Zoro # G8163671

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Style
Internal Threading Tool
Material
C2 Micrograin Carbide
Overall Length
2-1/2 in
Shank Dia.
1/4 in, 3/8 in, 5/16 in
Finish
Uncoated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IT-1
Zoro #
G8163671
UPC #
728709137352
Country of Origin
United States

Dimensions

Overall Length
2-1/2 in
Shank Dia.
1/4 in, 3/8 in, 5/16 in
Hole Dia.
0.180", 0.200", 0.230", 0.290", 0.320", & 0.360"
Max. Depth
0.500", 0.600", 0.600", 0.750", 0.750", & 0.750"
Largest Bar Max. Hole Depth
3/4 in
Smallest Shank Dia.
1/4 in
Max. Hole Depth
0.6000 in, 1/2 in, 3/4 in
Largest Shank Dia.
3/8 in
Smallest Bar Min. Bore Dia.
0.1800 in
Largest Bar Min. Bore Dia.
0.3600 in
Smallest Bar Max. Hole Depth
1/2 in

Details

Item
Threading Tool Set
Style
Internal Threading Tool
Material
C2 Micrograin Carbide
Finish
Uncoated
Includes
Mfr. No. IT-180500, IT-200600, IT-230600, IT-290750, IT-320750, IT-360750
Cutting Angle
60 Degrees
Application
Interal Threading
Number of Pieces
6
Cutting Direction
Right Hand
Features
Corner Radius Profile, Polished Split Face for Improved Edge Retention and Chip Evacuation While Reducing Galling, Split Geometry Makes the Tool as Rigid as Possible
Cutting Application
Threading
Material - Machining
Carbide
Shank Type - Machining
Straight with Three Flats
Finish - Machining
Bright (Uncoated)
Thread Direction
Right Hand
Min. Teeth per Inch
10, 14, 20, 24
Offset Point
0.0230 in, 0.0260 in, 0.0320 in, 0.0400 in, 0.0430 in, 0.0490 in
Series
IT
Shank Material
Carbide
Projection
0.0400 in, 0.0450 in, 0.0550 in, 0.0700 in, 0.0750 in, 0.0850 in
Number of Tools
6
Center to Cutting Tip
0.0550 in, 0.0740 in, 0.0750 in, 0.1330 in, 0.1340 in, 0.1730 in
Included Angle
60 Degrees

Description

Threading Tool Set, Right Hand, Number of Tools 6, Bright (Uncoated), 60 Degrees
