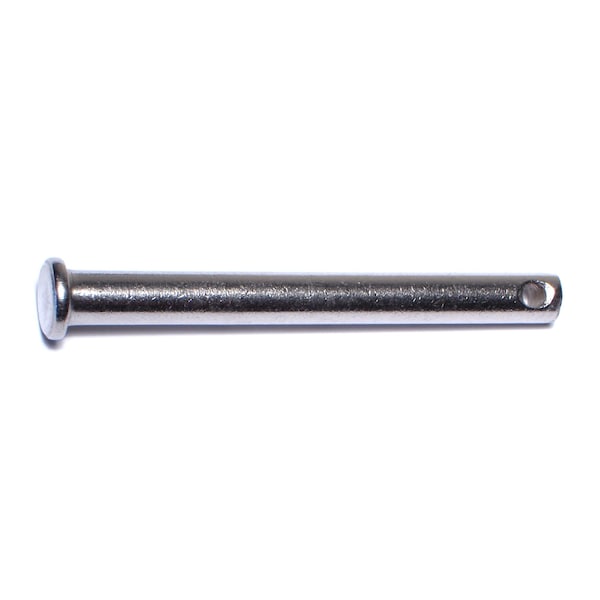

Clevis Pin, 5/16 in Dia, Stainless Steel
Mfr # 75823
Zoro # G702519838
CAD Available
product price: $16.89
/pk 3, $5.63/eaKey Features
CAD Drawing
Pin Item
Clevis Pin
System of Measurement
Inch
Clevis Pin Type
Single Hole
Pin Diameter
5/16 in
Basic Material
Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
75823
Zoro #
G702519838
UPC #
738287758238
Country of Origin
India
Dimensions
Pin Diameter
5/16 in
Shank Length
3 in
Pin Dia.
5/16 in
Fastener Length
3 in
Diameter 1
5/16"
Diameter 2
1/8"
Length 1
3"
Details
CAD Available
Yes
Item
Clevis Pin
Pin Item
Clevis Pin
System of Measurement
Inch
Clevis Pin Type
Single Hole
Basic Material
Stainless Steel
Material Grade
18-8
Material
Stainless Steel
Type
Clevis Pin
Hardness
18-8
Style
Single Hole
Specifications
Medalist #15-063-009
Description
A clevis pin is a type of fastener that will allow rotation of the connected parts about the axis of the pin. A clevis pin consists of a head, shank and hole. The hole passes through the shank at the opposite end of the pin from the head. A cotter pin is inserted through the hole to keep the clevis pin in place after assembly of the parts to be fastened.
